Golf simulator putting: what the sensor sees and what it fakes

A simulator renders a full drive convincingly and then hands you a 6-footer that feels like a coin flip. Most owners discover this mid-round with guests watching, blame the launch monitor, and buy nothing that fixes it. Golf simulator putting is the weakest part of the format by a distance, and the honest fix is three settings and one surface rather than a more expensive sensor.

Why a simulator reads your driver better than your putter

Every consumer launch monitor is built around one event: a clubhead arriving at speed, a ball leaving at speed, and a short window of flight it can measure or model. A putt hands it none of that. Ball speed sits in the single digits, launch angle is measurement noise rather than data, and there is no flight at all, just a roll across a floor the sensor cannot see. None of that is a defect in your unit. It is what happens when a shot-tracking instrument is pointed at something that is not a shot.

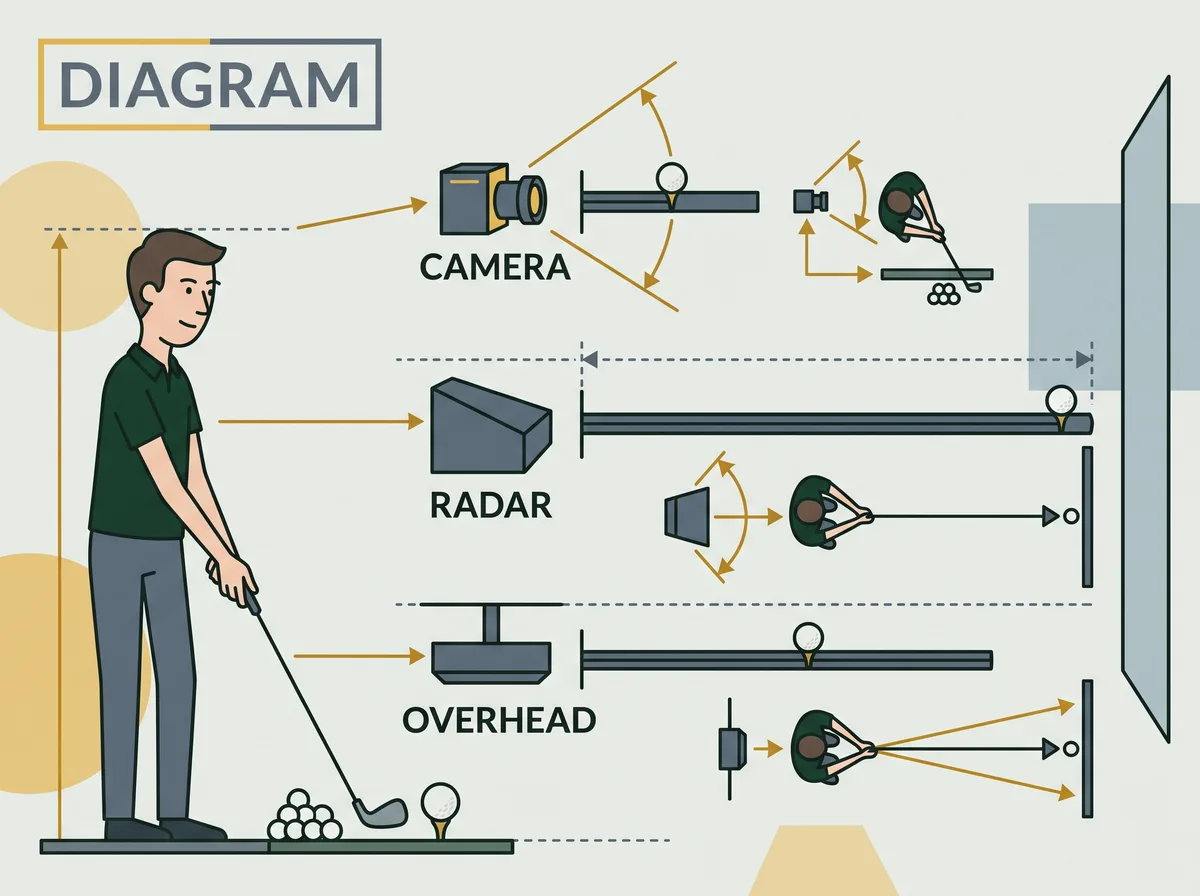

What a camera unit actually sees on a rolling ball

Photometric units take their reading in the first few inches after separation, which is the one part of a putt that still behaves a little like a normal shot. That is why cameras are the only class that registers putts with any consistency. A putt still produces a ball speed in the single digits and a launch angle that is noise, so most of the readings a full swing generates go blank or meaningless the moment you switch to a putter. Placement matters far more than it does for full shots. Foresight's own Essential Putting Analysis guide asks for the unit roughly 22 inches from the hitting area, on a level surface, raised to the same level as the hitting surface if a mat is used, and aligned within a 1 degree tolerance in either direction. A unit sitting on bare floor beside a half-inch mat is already outside that spec before you take the putter back.

Why radar units need flight they never get

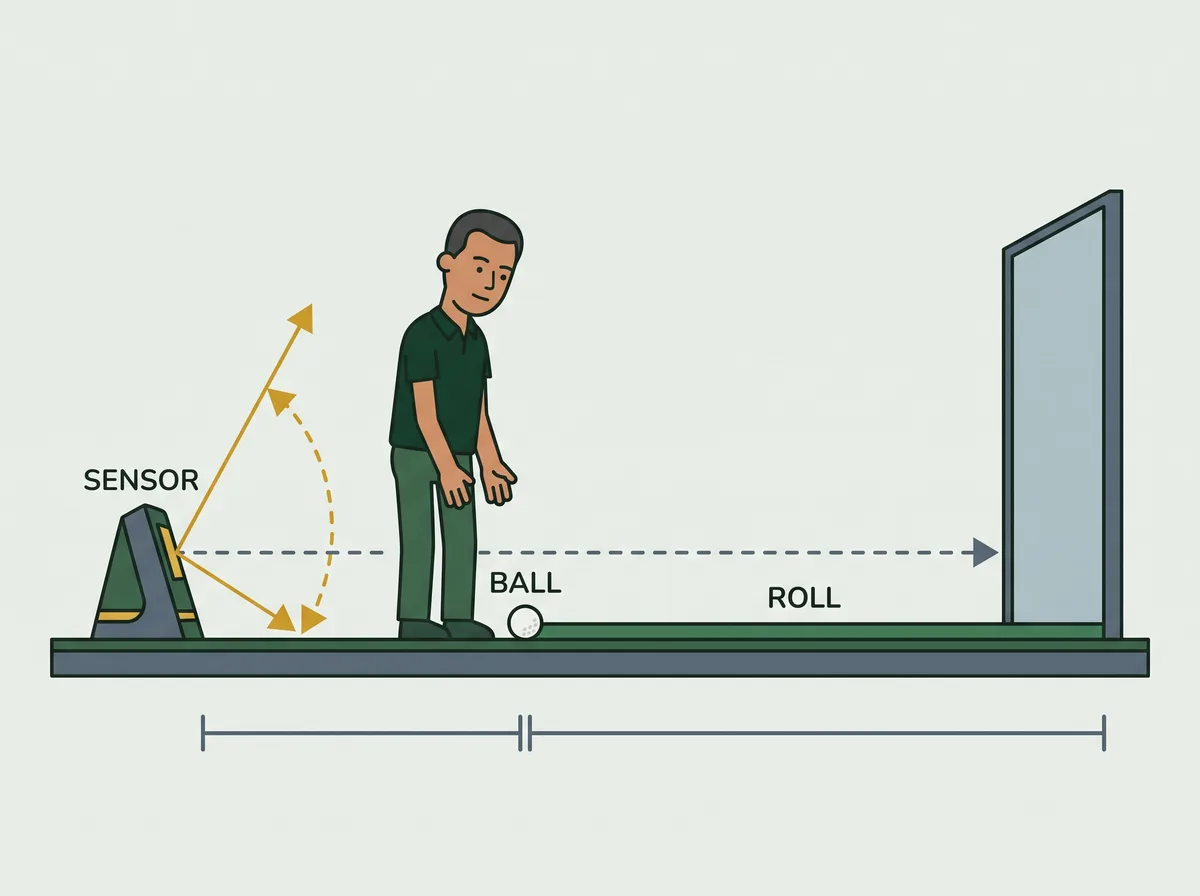

Doppler units work by watching an object move across a flight path, and a putt gives them a few feet of roll instead. FlightScope publishes the requirement plainly in its own launch monitor FAQ: putting mode wants 5 feet from sensor to tee plus a minimum recommended 8 feet of flat roll distance, and even then the unit returns three values, Launch Speed, Total Distance and Ball Direction. Rapsodo's indoor geometry is the same shape, 8 feet from ball to net and another 6.5 to 8.5 feet behind the ball. In a bay 12 feet deep, a radar unit is not going to read a putt at all, whatever the software offers on screen. This is the sharpest version of the difference between camera and radar tracking, because on a full swing the two classes converge and on a putt they do not.

Break is drawn, not measured

The floor under the ball is flat and always will be. Every slope, grain and roll-out on screen is physics running in software against a number you chose in a settings menu. No sensor tells the software what the real surface is doing, and no surface tells the sensor what the screen is showing. A putt that looks like it should break 3 inches breaks whatever the green speed value says it breaks, which is why the same putt can feel wrong on two machines running the same course.

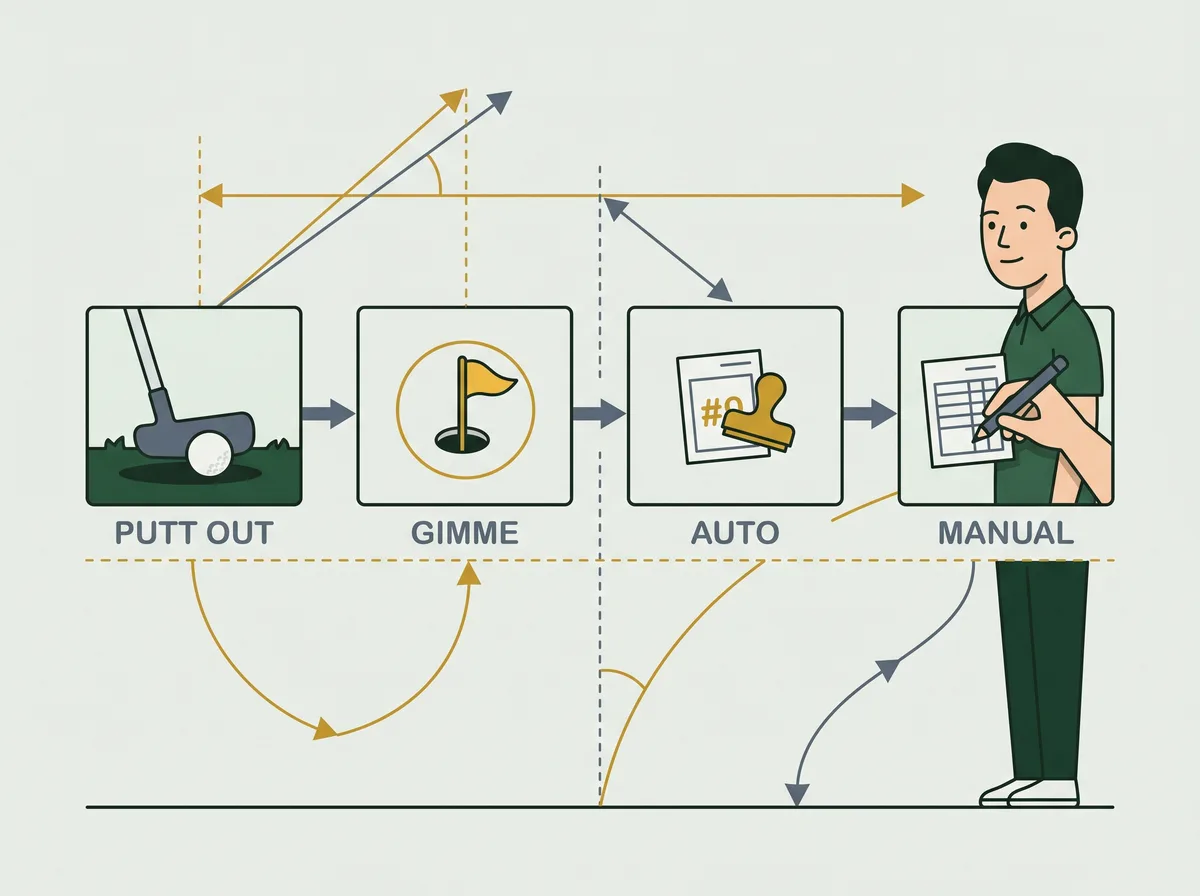

The four ways a simulator handles a putt

Putting is not one feature with an on switch. It is a choice between four handling modes, and most owners make it once and then live with it for years. The mode you pick changes an evening more than the price difference between two builds does, which is worth settling before you spend anything on a complete simulator package.

Gimme ranges and the number to actually set

TruGolf's E6 lists the gimme ladder outright in the putting options it documents: inside 2, 4, 6, 8 or 10 feet. Garmin's Approach R50 exposes Gimme Distance as a plain round setting, described as how close the ball must be to the hole for the next shot to be recorded automatically as made, sitting alongside a Putting toggle that enables or disables putting entirely. Our own numbers are 6 feet for solo rounds where the score is supposed to mean something, 10 feet when guests are waiting, and putting switched off completely for a full-swing practice session. Setting it once and never touching it again is the mistake. It is a per-session decision.

Auto scoring and what the software assumes about you

E6's Auto Score bands are published too: inside 5 feet counts as one putt, 5 to 35 feet counts as two, and 35 to 75 feet counts as three. Anywhere inside 35 feet you are handed two putts whether you rolled it to a foot or to nine feet, which flatters poor lag putting and quietly taxes good lag putting every single round. The alternatives in the same menu are Player Decides, where you enter the count yourself, and Player Putts Out, where you finish the hole for real. Auto scoring keeps a foursome moving. It is not a scoring system anyone should post a handicap against.

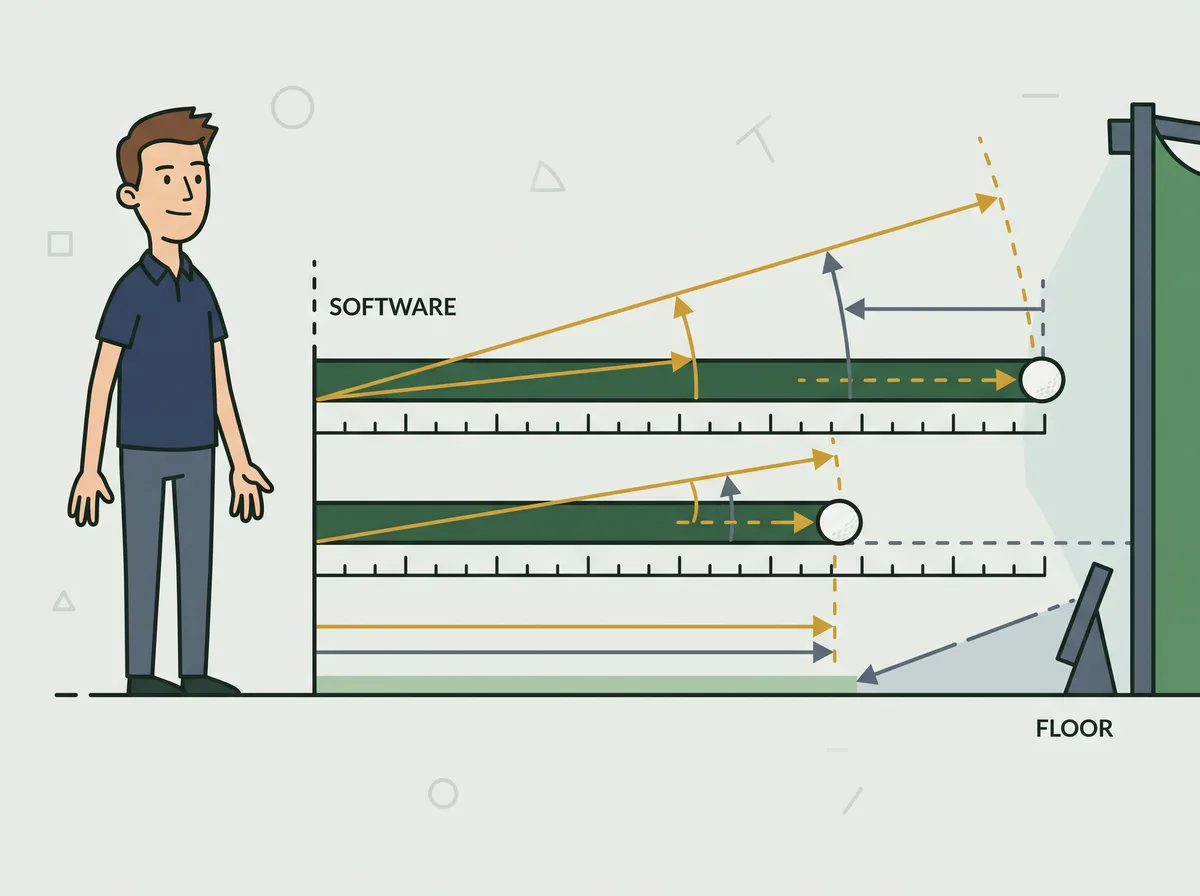

Green speed settings, and why sim putts feel fast

Two speed numbers are in play in every simulator round and they almost never match. The first is the value in the software. Garmin documents Green Speed in the round settings its manual lists as how fast the ball rolls on the green, one slider with no reference to your room. The second number is the actual roll of whatever is on your floor, which the software has no way of knowing and never asks about.

That second number is measurable. BirdieBall rates its simulator turf as grain neutral with a stimp in the 10 to 11 range, which is quick by any normal standard. For scale, the USGA's work on green speed limits records an average of 6 feet 6 inches measured by its agronomists at hundreds of US courses in 1978, and makes the point that past a certain speed a course's hole locations stop being usable at all. Match the software value to the surface you actually own rather than to a tournament number, and sim putts stop running away from you for reasons you cannot diagnose.

The surface under the ball decides more than the software

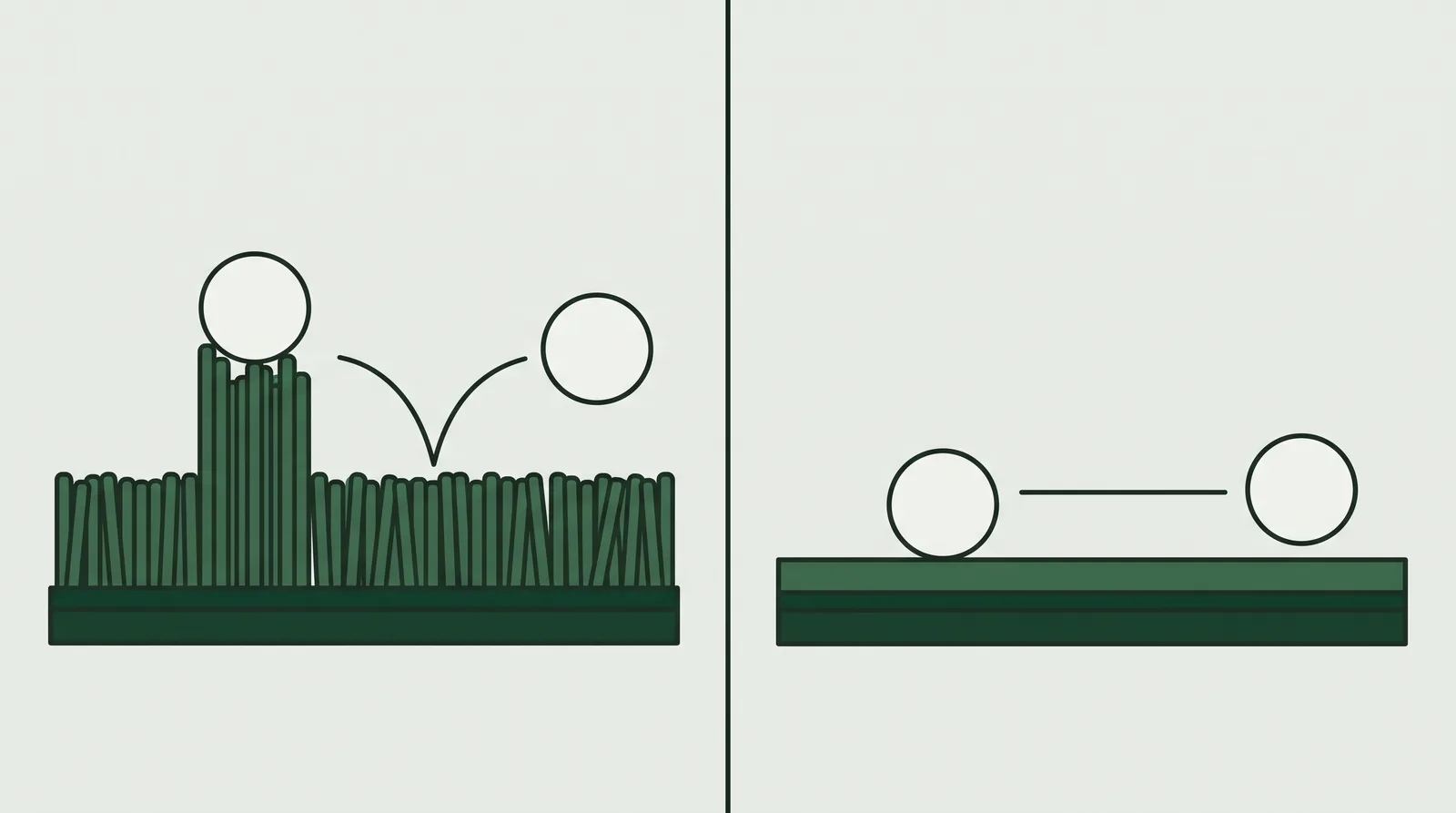

The most common reason putts read badly and feel worse has nothing to do with the sensor. People putt off the hitting mat. A high-pile hitting mat sits the ball up on the fibers the way a low tee would, so the first foot of a putt is a small bounce rather than a roll, and a photometric unit reading those first few inches sees launch where there should be none. The same pile also lifts the ball above the plane a floor-mounted unit expects, which is exactly the height problem Foresight's placement spec is written to prevent.

Turf inserts, combined surfaces and separate mats

Three routes fix it, at three prices. All figures below were read on 20 August 2026.

• A hitting mat with a tee insert, which keeps hitting and putting as two separate jobs on two separate surfaces. The GolfBays Insert Tee Hitting Mat is 4'11 by 4'11, takes a real tee, and sits at $379.
• A combined simulator turf covering the whole bay floor. BirdieBall's runs 6 to 7.5 feet wide by 8 to 18 feet long at half an inch deep from $810, with a 3.5 by 5 foot hitting turf as a $185 add-on that lifts off when you want to putt across it, plus corner shims at $99 if you want break near the hole.
• A separate putting mat beside the bay, unplugged from the simulator entirely. This is what we recommend to most owners, because it costs the least of the three and trains the part of putting that transfers.

Pile height and backing are the two specs that decide whether a putt rolls or bounces, which is why they lead how we rank hitting surfaces rather than sitting in the footnotes. A mat chosen for divot forgiveness on a wedge is usually the wrong mat to putt across, and that trade-off is worth making on purpose.

Which launch monitors putt well, and which do not

The blunt version: no home launch monitor at any price reads a putt the way it reads a 7-iron, and the units that come closest are camera units placed to their own spec. Putting is the one test where the price ladder stops holding, which is why it sits low in the weighting when we rank launch monitors against the way people actually use them at home. Prices below were read on 20 August 2026.

The GCQuad row is the one worth reading twice. Putt-grade data is not a feature of the monitor, it is a separate purchase. Foresight sells a putting analysis add-on at $2,500 on top of the unit, covering 14 measured performance metrics. That is the real price of putting numbers at home, and it is more than plenty of people paid for their entire launch monitor.

The sticker and marked-ball problem

Whether your ball needs marking is a buying decision almost nobody writing about putting bothers to record, so here are the four positions as the manufacturers state them.

• FlightScope sells aluminum stickers at $45 for a roll of 1,000 and calls them required for indoor use with all FlightScope technology, because indoors the unit needs them to measure ball spin accurately.
• Rapsodo states that a Titleist or Callaway RPT golf ball is required to show spin numbers on the MLM2PRO, though the unit works with any ball for everything else.
• SkyTrak heads a section of its technology page with the phrase no club or ball stickers needed, and pairs dual doppler radar for club data with a photometric camera for ball data.
• Uneekor's EYE XO2 states that no special markings are needed, because its high-speed cameras read dimple patterns instead of a marker.

The putting-specific consequence is the one nobody states: a putt produces nothing like the spin rates those stickers exist to capture, so a sticker requirement costs you nothing on the green. It costs you on every full shot either side of the putt, and in how often you are re-marking balls mid-round with a putter under your arm.

The putting setup we would actually build

A camera unit on a level plane at the height its own manual asks for. A flat putting surface that is not the hitting mat, whether that is a full turf floor or a roll-up mat beside the bay. Gimmes at 6 feet solo and 10 feet with guests. Green speed dialled to the turf you own rather than to a major championship. Then ten minutes of real putting at the end of each session, because start line and pace are the two parts of putting that transfer off a flat surface and back onto grass.

The dedicated route exists if putting is genuinely the reason you are buying. Putting-only units read a stroke without pretending to read a drive, and at the far end Full Swing's Virtual Green is an actuator-driven surface that physically tilts under the ball, 7 feet 7 inches by 12 feet 7 inches in the VG1 Square with 36 preset break scenarios, starting at $80,900. That figure is the whole argument in one number: real break is expensive, and everything cheaper than it is a drawing. Ten minutes on a real surface at the end of a session compounds faster than an hour of on-screen putts, and it slots into a session structure built around measurable feedback without touching the software's weak spot.
