Golf simulator room requirements: the numbers that decide a build

Golf simulator room requirements decide a build before any component does, and most buyers reach for the tape measure after the order ships. An inch of ceiling or a foot of depth is a return, not an adjustment, and both are discoverable in ten minutes. Every number below traces to a manufacturer clearance or a door track specification, and five of them are worth writing down.

Ceiling height is measured off your swing, not your drywall

Nine feet of ceiling is the comfortable working number for most golfers, 10 ft is what manufacturers recommend when they get to choose, 8 ft 6 in survives with a shortened swing, and 8 ft is not recommended for full driver swings. Those four numbers cover nearly every room in a US house. Which one applies to you depends on your height and your swing plane rather than on the room.

A ceiling is measured off the golfer, not off the drywall. Rapsodo states the rule plainly: the ceiling wants to sit 6 to 9 inches above the top of your shot, which is why 9 ft clears a player around 5 ft 8 in while a taller golfer wants 10 to 11 ft over the same swing. TruGolf grades the same ladder, calling 9 ft the minimum, 10 ft comfortable, and 10.5 to 12 ft ideal for taller players. TrackMan publishes 10 ft as the practical minimum ceiling for comfortable swings, and calls 8 ft workable only in rare cases and with modified swings.

That is why a height figure copied off a spec sheet is close to useless on its own. A 6 ft 4 in golfer with a steep, upright driver swing tops out more than a foot above a 5 ft 8 in player's shot, and the difference comes out of the same ceiling. Measure the swing you actually make, with the club you actually intend to hit indoors, and grade the room against that.

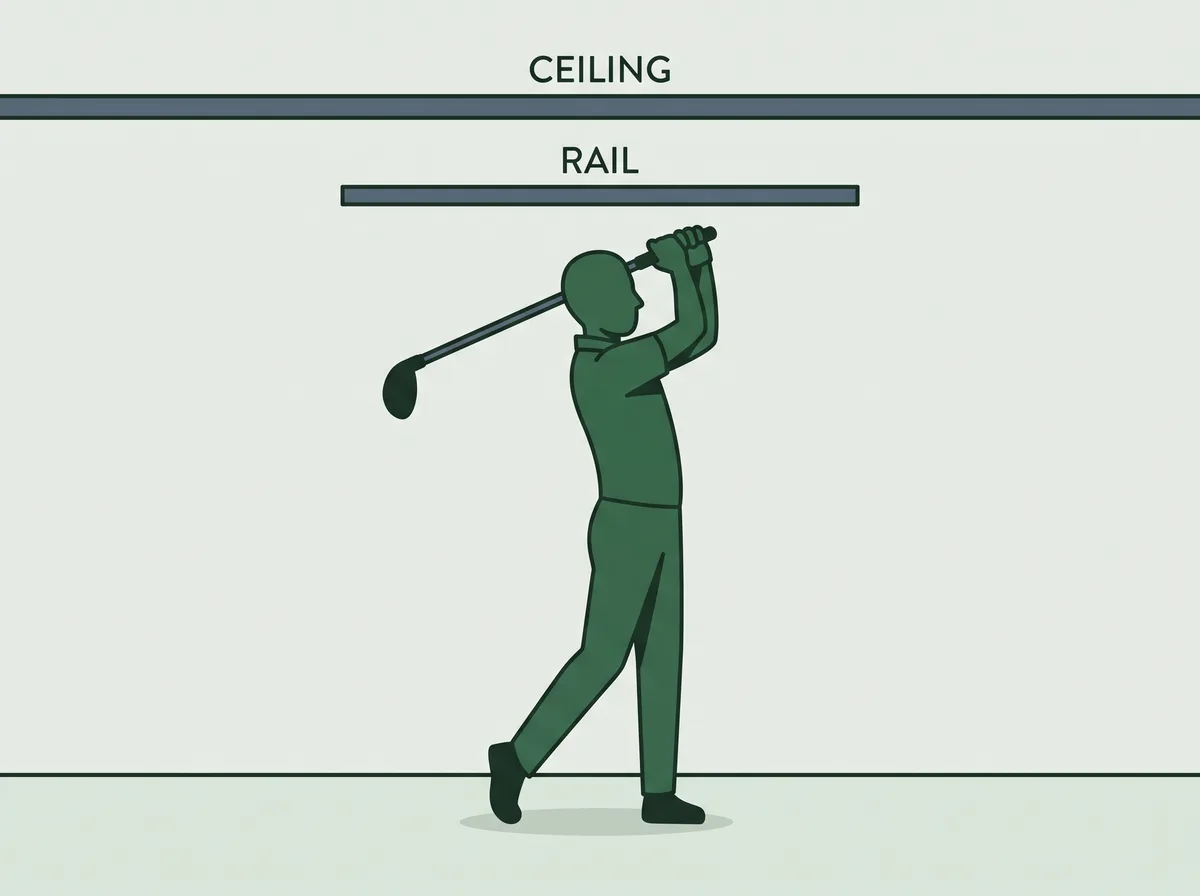

Measure the lowest obstruction, not the room

Ceiling height in a simulator room is the distance from the floor to the lowest thing over the swing arc, which is rarely the ceiling. Stand at the intended hitting position and look up. The garage door rail, the opener rail, a duct run, a beam, a sprinkler head, a pendant light and a smoke detector all count. In most finished rooms that number lands 6 to 12 inches below the drywall, and in a garage the gap is wider still.

Then take the measurement seriously enough to move. The hitting position can usually shift a foot in either direction to clear a duct or to step past the end of a door track, and a foot of free height is worth more to the build than any component in it. Once the position is settled, run the physical test: a slow, full swing with the longest club in the bag, at every spot the ball might sit, including a teed driver and a ball played well forward in the stance.

If the driver whispers past the rail, the build does not die, it changes. Irons, wedges and a shortened driver swing still cover most of what indoor practice is for, and a room under nine feet is a well-mapped compromise rather than a dead end.

Depth is set by your launch monitor, and you can add it up

Depth is where buyers get sorted, and the sorting is done by the launch monitor rather than by the room. Camera units read the strike and the first few feet of flight. Radar units watch the ball travel and need a runway to do it. The gap is not a preference, it is physics: what each tracking technology measures decides whether the room has to hold a flight path or only a strike.

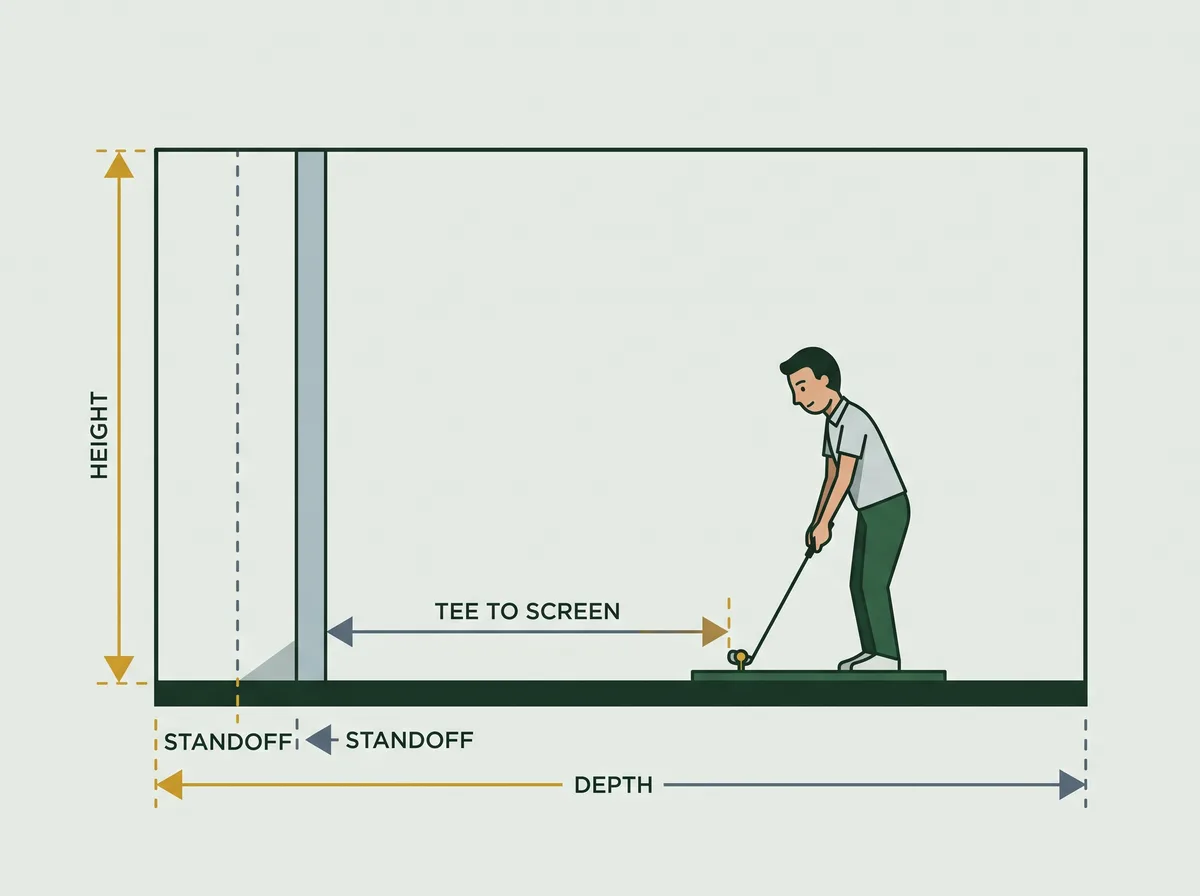

The useful part is that a depth requirement is a sum, not a folklore range. Every home bay is three measurements laid end to end: the space behind the ball, the ball-to-screen distance, and the gap between the screen and the wall behind it. Manufacturers publish the first two. The third is a fixed 12 to 18 inches. Add them and you get a number you can hold against your own tape instead of a range you have to trust.

Radar needs a runway

FlightScope's own FAQ places the Mevo+ 8 feet behind the tee for indoor use, and separately asks for 8 feet of ball flight as the indoor minimum when hitting with marked balls or aluminum dots. Garmin is a little tighter with the Approach R10. Its owner manual asks for the unit to sit 6 ft to 8 ft behind the tee, with the tee itself at least 8 ft from the net when playing indoors.

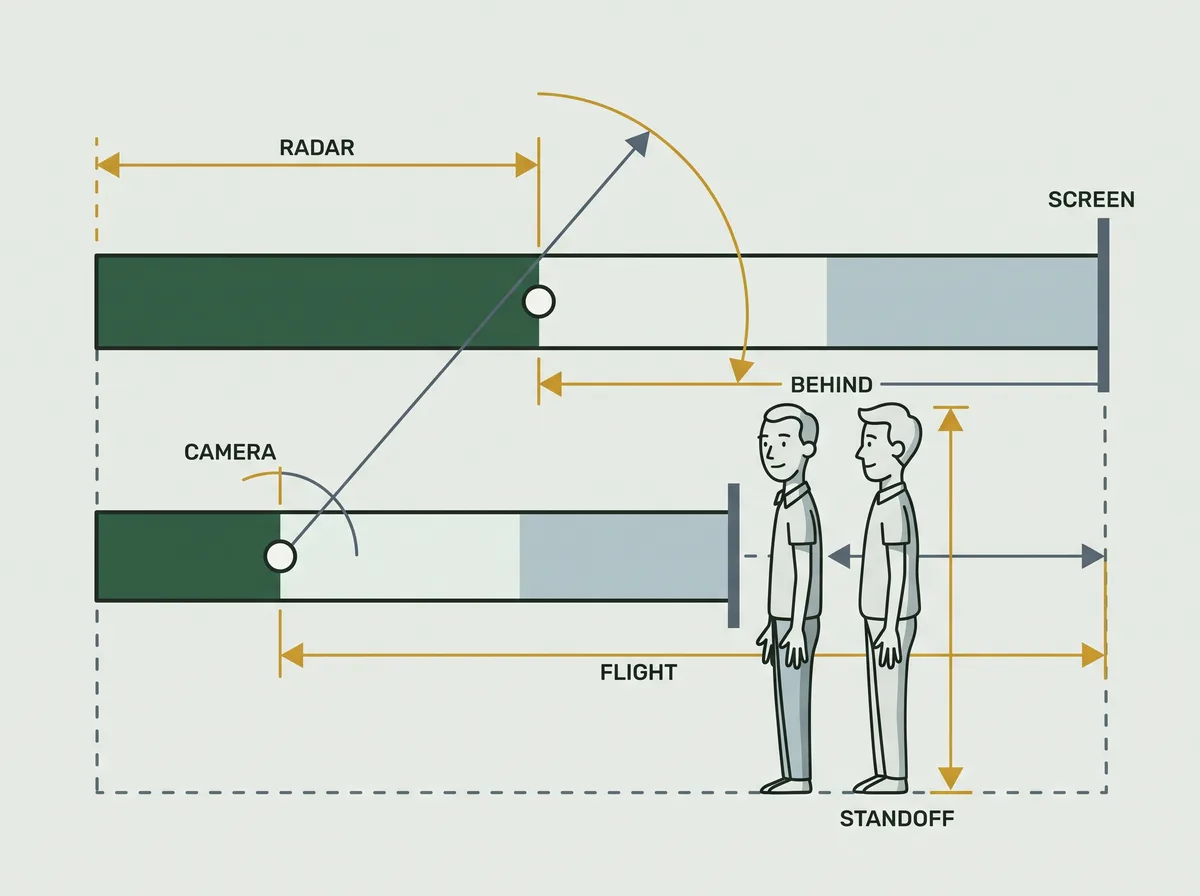

Stack those against the screen standoff and radar's honest floor is 16 to 18 ft of total room depth: 6 to 8 ft behind the ball for the unit and the swing, 8 to 10 ft of flight in front of it, and a foot or so behind the screen. TrackMan 4 is its own case and asks for 18 ft or more between the screen and the unit, which puts the room at 19 to 20 ft once the standoff is added. The newer ceiling-mounted TrackMan iO drops that to 10 ft or more from screen to ball, which is camera-class depth from a radar brand.

Cameras trade runway for a shorter room

A floor-standing camera unit sits beside the ball instead of behind it, which removes the largest single block from the depth sum. SkyTrak makes the point directly in its published space planner, noting that the unit sits next to the ball where other launch monitors need up to 8 ft behind the hitting area. What remains is the ball-to-screen distance, which BenQ puts at 10 to 12 ft for a projected image, the 5 to 7 ft we allow behind the golfer for a full swing, and the standoff.

That arithmetic lands at 16 to 19 ft, which is why the same planner recommends 17 ft of depth for a comfortable room. The floor is lower. The smallest studio package in that planner states an 8 ft 6 in wide by 15 ft deep by 8 ft high minimum room, and BenQ's projector guidance puts the absolute total depth floor at 13 ft. Treat 13 to 15 ft as the band where something has to give, and 17 ft as the number you would choose if the room let you.

Keep 12 to 18 inches between the screen fabric and any hard wall behind it, whatever the tracking type, with BenQ putting the gap at about 1.5 ft. A screen that cannot flex returns the ball with interest. That gap is also where the frame's tensioning hardware lives, so it is rarely optional even when the room is desperate for the inches.

Overhead mounts trade floor space for ceiling

There is a third geometry that most room guides bury inside a per-brand list. An overhead camera unit bolts to the ceiling ahead of the tee and reads the ball from above, which changes the shape of the room rather than its size. Uneekor's calibration guide for the EYE XO2 asks for a ceiling height between 9 and 10 ft with the sensor mounted 3 ft 6 in in front of the tee position, and warns that missing either figure compromises accuracy.

The payoff is a clear floor. Nothing sits beside the mat to kick, nothing has to be repositioned when a left-hander steps in, and the depth sum loses its behind-the-ball term entirely. The cost is that the mount point has to be real structure. A drop ceiling rules it out, a joist bay running the wrong way makes the fixing awkward, and most rentals make it impossible.

Worth stating plainly, because it often gets sold the other way round: an overhead unit does not need less ceiling than a floor unit. It needs the ceiling to be tall enough for the swing and load-bearing at the mount point, which is a harder requirement rather than an easier one. What an overhead mount saves is depth, and only depth.

Width, and what changes when a lefty plays

Width has a ladder of its own. Ten feet is the working minimum, 12 ft is what SkyTrak suggests for a more spacious feel with one golfer, 14 ft is what a centered tee genuinely wants, and TrackMan benchmarks 15 ft or more before a golfer stops feeling constrained. Below 10 ft the stance drifts off the screen's center line and every projected fairway aims slightly sideways.

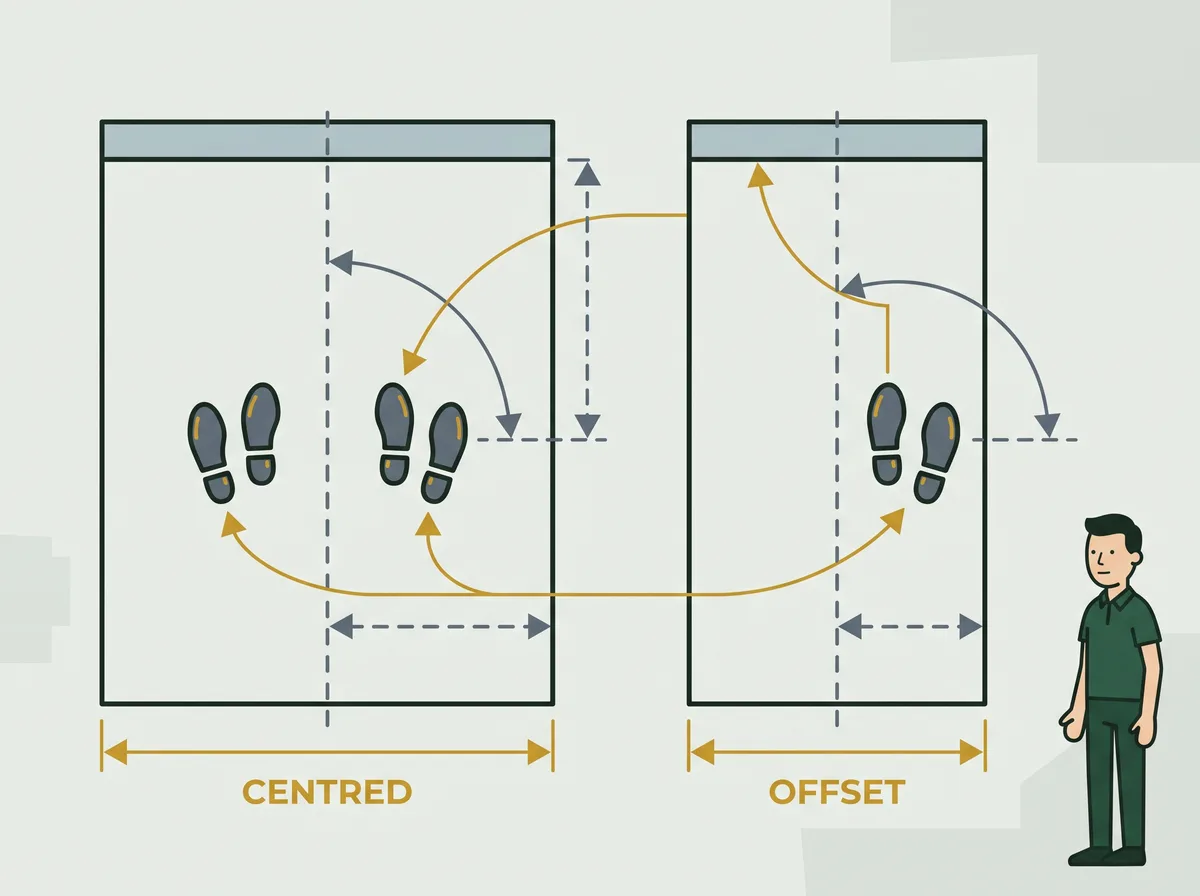

The trade nobody spells out sits underneath those numbers. A fixed centered tee needs 14 ft because both stances have to fit either side of the screen's center line with a full arc. An adjustable or offset tee lets an 11 to 14 ft room serve both hands instead, since SkyTrak puts the cost of dual-handed play at only 1 to 2 ft of extra width. What you give up is a centered image, so aim lines read a touch off, and one hand ends up closer to a side wall than the other.

If the tee stays fixed and centered for both hands, the numbers go up again. TruGolf recommends 14 to 16 ft when right and left handed golfers share a room, and BenQ puts the mixed-handed figure above 15 ft of total width. Overhead units skip the problem entirely, because nothing on the floor has to move when the golfer switches sides.

Width is really a frame decision rather than a room decision. The difference between an 8 ft bay and a 12 ft bay is the difference between one stance and two, which is most of what separates enclosures by footprint once price is set aside. Measure at shoulder height too, because baseboards, shelving and a workbench along one wall take width out of the room exactly where the club travels.

The projector is the number that breaks first

Depth pressure almost never shows up as a launch monitor problem. It shows up as a projector problem, because tee-to-screen distance is doing two jobs at once. It is the flight window the monitor needs, and it is the throw distance the projector needs in order to fill the screen.

A short-throw projector in the 0.69 to 0.89 throw ratio band, which BenQ calls the sweet spot for simulator use, mounts 2 to 3 ft behind the tee and consumes ceiling rather than depth. A standard-throw unit needs most of the room length between lens and screen, which puts the golfer in the beam. That is how people end up with a keystoned image and a shadow of their own backswing on the fairway.

The order to work in is fixed. Set tee-to-screen from the launch monitor requirement first, then buy the projector whose throw ratio produces your screen width from a mount point behind the tee. Reversing that order is how a 16 ft room ends up needing 19 ft. Aspect ratio is a hard constraint on top of that. BenQ works the example: a 16:9 projector at a 0.8 throw ratio fills a 14 ft by 7.9 ft image from about 11.2 ft back, and a 16:10 image sized to a 10 ft tall wall would be 16 ft wide. The image is nearly always sized down to the screen rather than up to the room.

What US rooms actually give you

Most home builds land in one of five rooms, and each one fails in a characteristic way. Knowing which failure mode belongs to your room is faster than measuring everything twice, and it tells you which of the five measurements to take first.

The garage door track sets your ceiling

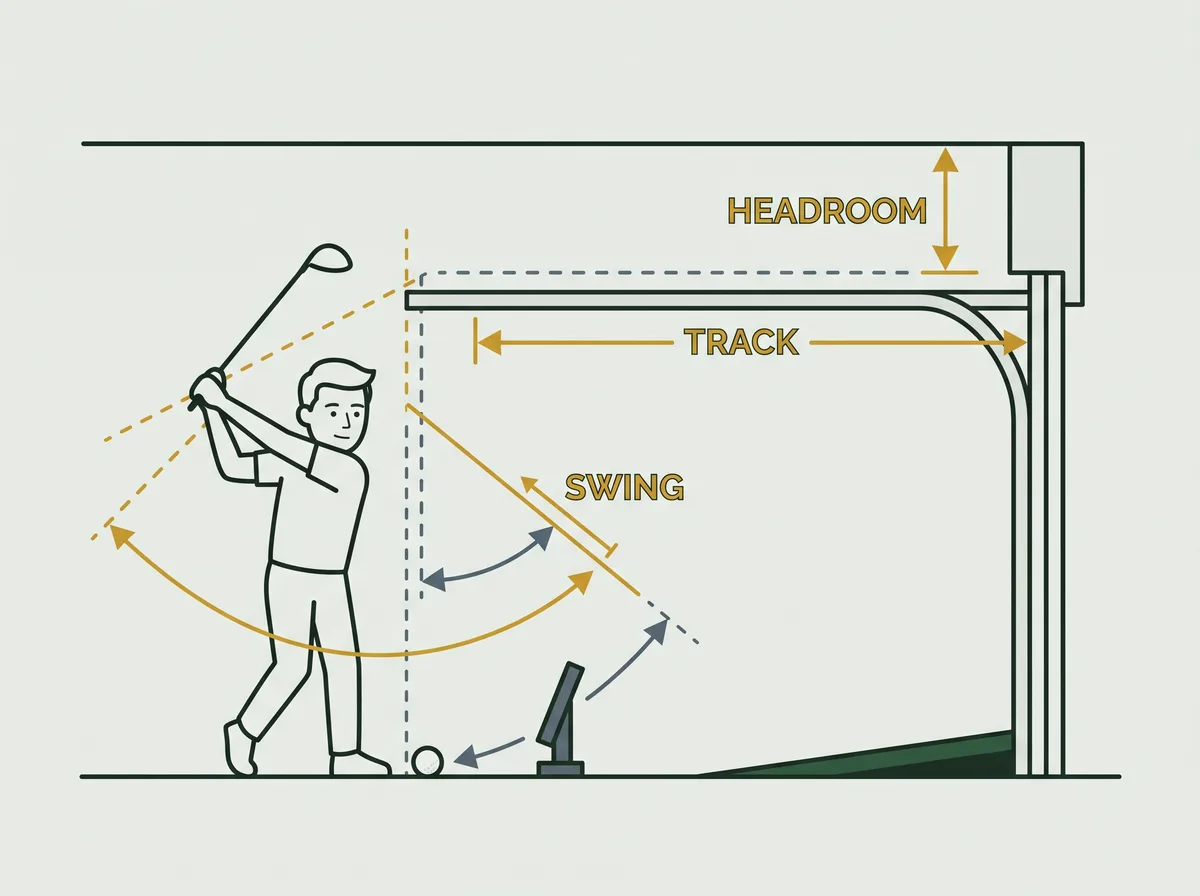

A two-car garage almost always has the depth. What it does not have is the height it appears to have, because the door hardware crosses the ceiling exactly where a hitting bay wants to stand. Clopay publishes the figures for residential track: a standard radius track needs 12 to 14.25 inches of headroom above the door opening, and the horizontal track then runs back into the garage for the door height plus 16 inches.

Run that arithmetic on a normal garage and the picture changes. A 7 ft door on standard track puts hardware overhead for roughly 8 ft 4 in back from the opening, and the track assembly needs 12 to 14.25 inches above the opening. Usable clearance over that first stretch of the bay is closer to 8 ft than to 9 ft, and that strip is exactly where the hitting position wants to sit if you want the screen against the back wall.

The fixes run in order of cost. Move the hitting position past the end of the horizontal track, which is free and often enough in a deep bay. Convert to low headroom track, specified at 9 inches of headroom front-mounted or 4.5 inches rear-mounted, at the price of more room behind the door: the door height plus 23 inches front-mounted, or plus 30 inches rear-mounted. Or fit high lift track, which raises the whole horizontal assembly and needs the lift height plus at least 9.5 inches above the door. A jackshaft opener is a separate fix for a separate obstruction, moving the motor to the side of the door and removing the center rail entirely.

The builds that live happily under an 8 ft rail are the ones chosen for it, which is the whole reason builds proven at garage height state their clearance line before their price.

Basements fail on joists, not on drywall

Basements have the opposite problem. Depth is usually generous, often the full run of the house, which is why a basement is one of the few home rooms that suits radar as comfortably as it suits a camera. Height is the constraint, and it is set by things that are hard to move: a main duct trunk, a steel beam, a waste line running crosswise, or a drop ceiling that has already taken 4 to 8 inches out of the room.

The drop ceiling deserves its own decision. Pulling the tiles over the hitting area alone is legitimate, ugly and effective, and it buys back the grid depth without touching the rest of the room. It does not buy back a mount point for an overhead unit, because the grid was never structure. If an overhead camera is the plan, the fixing has to reach the joists above, and that has to be checked before the unit is ordered rather than after.

Five measurements to take before you order

Take these in order, at the exact hitting position, with a tape and a note. Each one carries the number that fails it, and any single failure is worth finding before the box ships rather than after.

1. Lowest obstruction over the hitting position. Not the drywall: the rail, duct, beam or light fitting that actually sits lowest over the swing arc. Fails below 8 ft 6 in for full driver swings.
2. Width at the stance, wall to wall, taken at shoulder height rather than at the baseboard. Fails below 10 ft. Below 14 ft, a fixed centered tee is out and the tee has to be adjustable.
3. Total depth, back wall to the wall the screen will hang on. Fails below 15 ft for radar, and below about 13 ft for a floor-standing camera.
4. Intended tee position to the face of the screen. Fails below 8 ft with any tracking technology, and below 10 ft you are compromising either the monitor's read or the projector's throw.
5. Clearance behind the screen, from the fabric line to the hard wall. Fails below 12 in, because the screen has to flex and the frame hardware has to fit somewhere.

Write all five on one note and take it shopping, because every product page in this category states its requirement in the same five terms. With those numbers in hand, most of the decisions that come before ordering resolve themselves, since the room has already eliminated half the market. That is also why every entry on our home simulator ranking leads with its clearance line rather than with its price, and why we would rather talk a buyer down to a smaller bay than sell them a return.
