The golf simulator buying guide: 6 decisions that matter

A golf simulator is six decisions wearing one price tag, and the expensive mistakes are almost never brand mistakes. Buy in the wrong order and you get radar in a room too short for it, or a complete bay that cannot run the software your friends play on Tuesday nights. This golf simulator buying guide runs the six in the order that saves money, with every price read from a live listing.

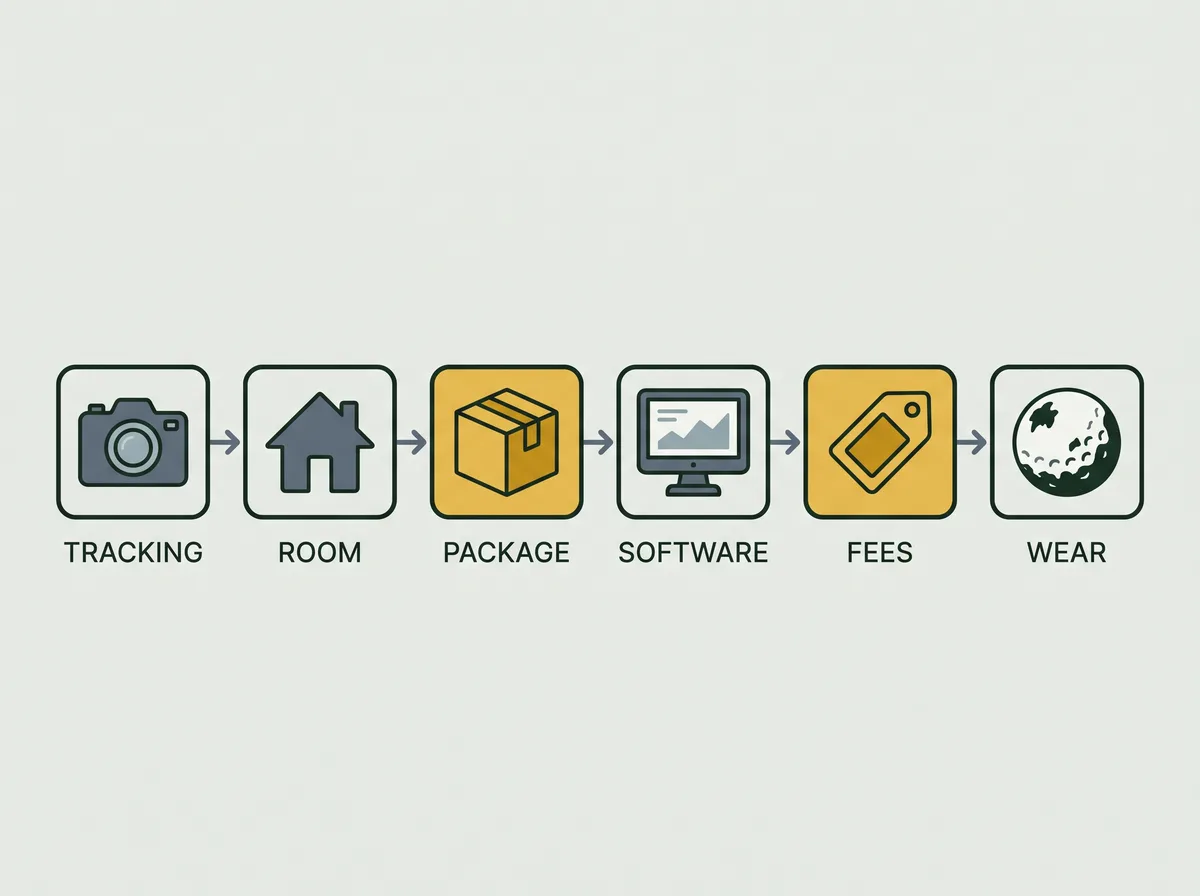

The six decisions, in the order that saves money

Each of these decisions removes options from the ones below it, which is why the sequence matters more than any single choice inside it. The depth behind the ball decides the tracking technology, and the tracking technology cuts the shortlist roughly in half. Software preference cuts it again. Only then does budget do any useful work, because by that point it is choosing between units that will all physically fit and function in your space.

1. Tracking technology. Camera or radar, decided by how much depth sits behind the ball.
2. The room. Ceiling, width and depth measured at the hitting position, not off the floor plan.
3. Package or parts. One order that is known to fit, or separate components you match yourself.
4. Software. GSPro, E6 Connect or a self-contained unit, checked against the monitor's support list before purchase.
5. The fees. Sticker price plus five years of whatever renews.
6. The wear items. The screen and the mat are consumables, not fixtures.

Decision one: camera or radar tracking

Photometric cameras sit beside the ball, read the strike and the first few feet of flight, and infer the rest. Doppler radar sits behind the ball and tracks it through the air, which means the ball has to travel before the numbers settle. The honest split is that cameras read the strike and radar reads the flight, which is why the two technologies want opposite room shapes. Price does not decide this one, because both technologies exist under $1,000 and both exist above $10,000.

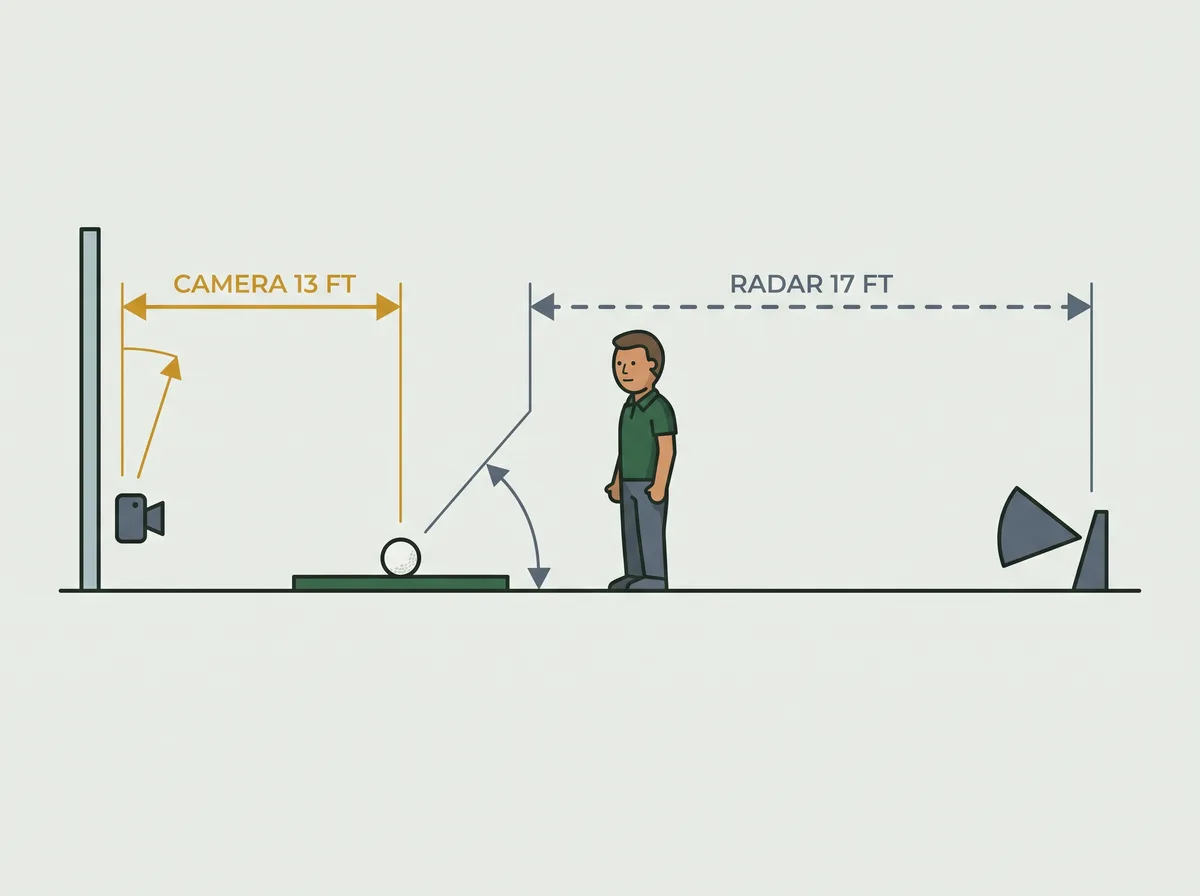

What each technology asks of the room

A camera unit works from roughly 12 to 13 ft of total depth, since it only needs to see the ball leave. Radar wants 16 to 17 ft as a floor, and published guidance across the category runs higher still. A rear-mounted unit asks for 6 to 8 ft of setback between the ball and the sensor before any ball flight at all, and adding the 13 ft of flight those units want to see sums to 19 to 21 ft, which is space most garages do not have spare.

Lighting is the other split, and it gets ignored. Cameras care about it and radar does not, so a dim basement bay with one bulb over the mat is a camera bay by default, no matter what the budget says.

What each technology costs at each tier

Entry tier is where the parity is clearest. The Rapsodo MLM2Pro sits at $599.99 against a $699.99 regular price and the Garmin Approach R10 at $499.99 against a $599.99 regular price, and those two units take different tracking approaches at nearly the same money. The middle tier opens with the FlightScope Mevo+, which FlightScope's own store shows at $1,099 against a $2,299 regular price, then runs through the SkyTrak ST MAX at $1,995 against $2,995 to the Bushnell Launch Pro at $2,499.

Above that, the Foresight GC3 that Foresight lists as starting at $6,999 is the practical entry to the premium tier, and the Uneekor EYE XO2 lands near $10,999. Every unit worth shortlisting at those three tiers is ranked with its current listing price, because the sale prices in this market move month to month.

Decision two: the room, measured before anything is ordered

The tape measure comes before the credit card. The three numbers that decide everything are ceiling height, width and depth, taken at the hitting position rather than in the middle of the room. A 9 ft ceiling swings a driver for most golfers, and 10 ft is comfortable for tall players and for overhead-mounted units. At 8.5 ft the driver gets awkward, and below 8 ft the bay becomes an irons and wedges room. Width wants 10 ft as a floor and 12 ft to keep the stance centered and let a left-hander use the same bay.

The lowest obstruction, not the ceiling

Nominal ceiling height is the number that gets quoted and the wrong number to measure. What matters is the lowest thing over the swing arc: a garage door track, a duct run, a light fixture, a joist that drops two inches below its neighbors. We have watched more builds stall on a door rail than on a budget shortfall, and a standard-lift track claims 12 to 15 inches of headroom above the door opening before it runs back into the room.

The fix exists but it is a separate project with its own quote. High-lift or side-mount track conversion moves the rail up and out of the swing, and it belongs in the budget before the simulator rather than after the enclosure has already been delivered.

What a short room still allows

A tight measurement narrows the club list far more often than it kills the project. At 8 ft, a shorter ceiling costs you the driver and very little else, which is a trade most buyers accept once they see it written down. A full 7-iron needs less vertical space than people assume, and the wedge and short-iron work that lowers scores fastest needs less again. The room that cannot host a driver can still host four hundred quality wedge shots a week.

Decision three: package or parts

A package lands as one order: monitor, enclosure, impact screen and mat, priced together and known to fit each other. Parts shopping buys each piece separately and inherits the compatibility homework. Every guide in this category says packages are convenient and stops there. None of them does the subtraction, and the subtraction is the only thing that answers the question.

What the package premium actually is

Take one seller's components and price them on their own. A SimBox enclosure is $1,699 against a $1,999 regular price, a Pro+ impact screen is $550, and an insert-tee hitting mat that takes a real tee is $379. That is $2,628 of bay before any tracking hardware at all. Add each launch monitor's standalone price to that $2,628, compare the result against the matching complete bundle, and the premium turns out to run in both directions.

The spread is the whole point. The same seller's bundle is $71 more expensive than its own parts around a $599.99 Rapsodo, $762 more expensive around a $1,995 SkyTrak, and $828 cheaper once the monitor costs $6,999. Bundles discount hardest where the monitor carries the margin, so run the subtraction on the specific pair in front of you instead of trusting the category. Both the $3,349 R10 bay and the $4,899 SkyTrak+ bay sit in the band where a complete build stays under five thousand dollars, and that band is more crowded now than it was a year ago.

The three cases where parts win

Parts shopping earns its keep in three situations. The first is a monitor you already own, where a bundle discount on hardware you do not need is worth nothing. The second is a room with an awkward dimension, where a stock enclosure either wastes a foot of width or does not fit at all. The third is the one where a self-built frame genuinely undercuts every bundle, because the lumber is priced at the hardware store rather than at a golf retailer.

Either route needs the frame and the screen to agree on dimensions before anything ships, which is why the enclosures we rank are listed with their finished internal measurements rather than their outside footprint. A screen ordered to the outside dimension arrives an inch short on every side.

Decision four: the software question

Buy the monitor that runs the software you want, not the other way round. GSPro is the community platform: a large user-built course library, an active tournament scene, and a $250 annual subscription. E6 Connect is the licensed alternative and covers most of the market on lighter hardware. Garmin's R50 sidesteps the question with 43,000 courses on a built-in 10-inch screen and no PC in the budget at all. The choice usually comes down to a community course library against a licensed one, and the two platforms reward different kinds of player.

Check the compatibility list before the price list

This is the step almost nobody takes in the right order. GSPro publishes a list of 31 supported launch monitor devices spanning Uneekor, FlightScope, Foresight, Bushnell, Garmin and Rapsodo hardware, plus an open API for community-built connections. That list is public and takes a minute to scan.

It is also the difference between a monitor that joins your friends' Tuesday league and one that sits outside it forever, which is the second most common regret in this purchase after room depth. Scan it before you open a single review. The same discipline applies to E6 Connect, which supports a different and only partly overlapping set of units.

What the PC line really costs

GSPro's published minimum for 1080p is a GTX 3060, 16 GB of memory and 10 GB of free space on a wired connection. Its 4K recommendation jumps to an RTX 3080 or better with 32 GB, and the machine that holds frame rate at 4K is a different build from the one that scrapes the minimum. In money that runs from about $900 for a prebuilt clearing the 1080p floor to about $2,800 for a self-built machine that holds 4K at current component prices, and it is the line item buyers forget more often than any other. The R50 route costs nothing here, and E6 Connect runs on lighter hardware including an iPad on several units.

Decision five: the fees behind the sticker

Some of this market is buy-once and some of it rents its own features back to you. Sticker price and the number you actually end up spending diverge by more in this category than in any other piece of golf equipment. A monitor on a $199 annual plan and a monitor on a $599.99 annual plan are not $400 apart. Over a normal ownership period they are $2,000 apart, and the sticker hides all of it.

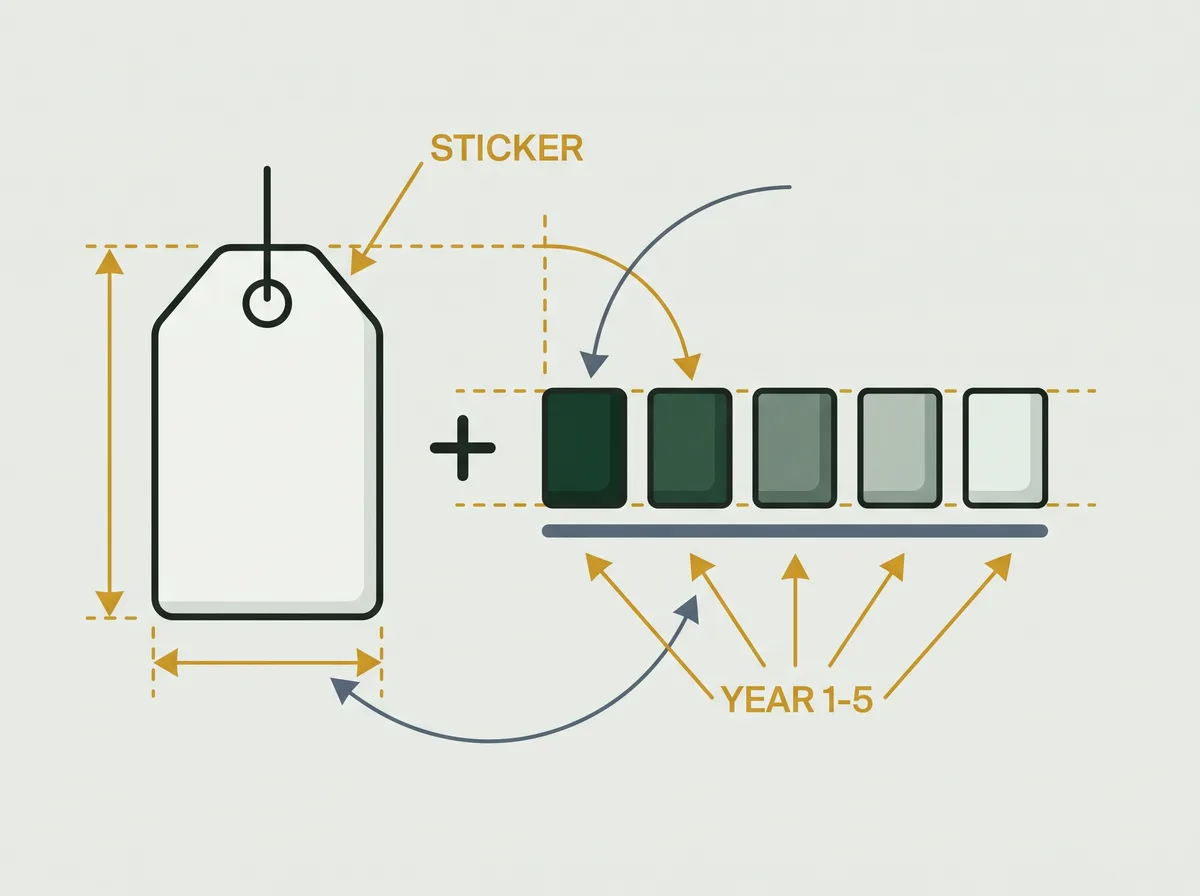

The five-year arithmetic

Five years is the honest horizon for a home bay, so multiply every renewing fee by five and add it to the sticker. The Foresight GC3 ships unlocked with nothing renewing. The Bushnell Launch Pro runs the same three-camera engine at $2,499 with a $199 Silver or $499 Gold data plan. SkyTrak's membership tiers run Essential at $99.99, Core Foresight at $299.99, Core TrackMan at $349.99 and Elite at $599.99 a year, and Garmin's R50 requires no membership at all.

Read the last column and the value order changes. A $2,499 Launch Pro on Gold reaches $4,994 and a $1,995 ST MAX on Elite reaches $4,994.95, which puts those two within a dollar of each other and puts the GC3 that looked $4,500 more expensive at $2,005 more expensive. Add GSPro's $250 a year on any row where it is the platform and the gap closes further. Every figure in that table was read on 20 and 21 August 2026.

The projector is the third recurring surprise, at $1,299 to $2,899 for a unit bright enough to hold color on a screen. Throw distance decides where it can mount, and a room that cannot mount one in front of the swing has to be planned differently from the first measurement onward.

Decision six: the wear items

Two components in the bay are consumables and belong in the purchase budget rather than in a support ticket eighteen months from now. The impact screen absorbs every strike and stretches while it does. The mat takes the same volume and passes whatever it fails to absorb straight into your wrists and elbows.

Budgeting the screen and the mat

Impact screens run from about $149.99 for a commodity panel to $550 for a flagship, with a reversible option at $391 against a $541.20 regular price that flips to a fresh face once the first one marks up. Under home volume a screen lasts roughly two to five years, an industry range rather than our own testing, so budget one replacement inside the frame's life.

Mats sit at $379 for an insert-tee model that takes a real tee, and around $450 for a Fiberbuilt Flight Deck. A mat that gives at the strike is the one component where the cheapest build still should not be the cheapest option, because your wrists absorb whatever the mat does not. The projector light source is the quiet third consumable, and only the lamp units qualify: a lamp fades measurably inside its first 1,000 hours, while manufacturers rate the laser projectors that dominate the simulator shortlist at 20,000 to 30,000 hours.

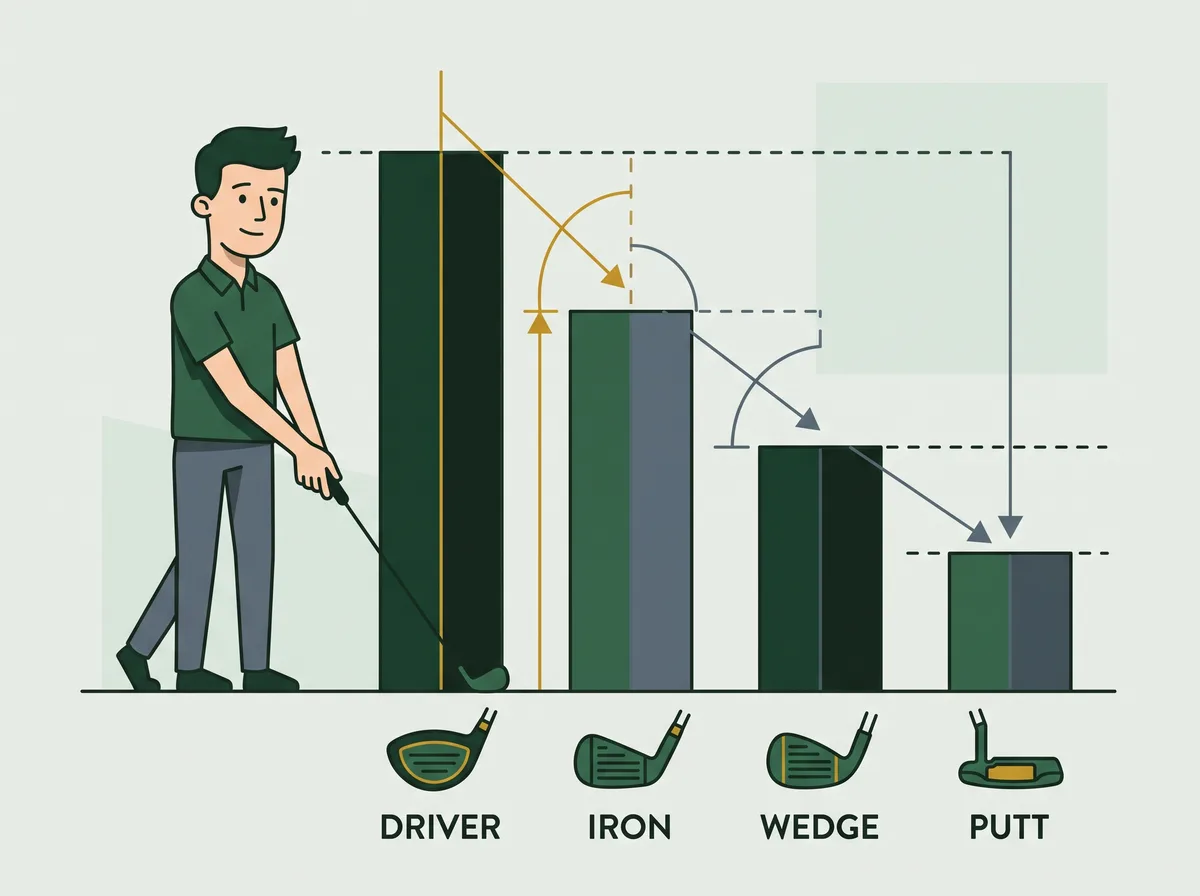

What a simulator will not do as well as you expect

Nobody selling these writes this section, so here it is. Putting is the weakest link on almost every system, because the sensor reading a 110 mph driver strike is being asked to read a 4 mph roll, and the surface under the putter is a mat. Partial wedges and chips inside about 30 yards are the second soft spot, where camera systems see too little ball flight to be confident and radar has had no time to measure anything at all.

The mat itself hides fat strikes, since a sole that would have dug into turf just skids and returns a number the shot did not earn. Radar spin figures need depth the room may not have. And a bay set up for one handedness rarely converts to the other without moving the mat, the monitor and sometimes the screen.

Fixable with money, and not fixable at all

Putting improves with a dedicated putting surface and, on some systems, an optical putting add-on, so it is a money problem. Short-game fidelity improves with a higher tier of hardware, so it is also a money problem. The mat question is not: no mat behaves like fairway turf under a fat strike, at any price. Handedness switching is closer to a design problem than a money one, and it is settled by the width you measured back in decision two.

Accuracy itself is better than the skepticism suggests, as long as you read it metric by metric rather than brand by brand. Independent testing puts ball speed inside roughly 1 to 2 percent of a reference across the whole price range, carry deviation at 4 to 5 percent on several models, and spin on some budget units 20 to 30 percent adrift, so how far to trust each number depends more on which metric you are reading than on which brand produced it.

The first month, and what it should cost you

The bay that still gets used in year three is the one that had a routine in month one. Start by calibrating against a known distance: hit ten 7-irons somewhere outdoors you trust, then hit ten indoors and compare the carry averages. If they disagree by more than a few yards, the cause is usually ball placement relative to the sensor rather than the sensor itself.

Then build a session you can repeat in forty minutes. Ten minutes of wedges to three specific numbers, twenty minutes of a played hole or a skills challenge, ten minutes of the one shot shape you cannot hit. A bay used without a plan becomes a very expensive driver-only range, which is why a session structure worth repeating matters more than any hardware choice on this page.

Budget for the first month as well. A dozen premium balls, a spare tensioning kit if the enclosure uses one, and a fan, because an enclosed bay in August warms up faster than anyone expects.

The order that saves money

Run the six in sequence and the market shrinks to a shortlist by itself. The room eliminates a tracking technology, the tracking technology eliminates half the units, the support list cuts again, the five-year arithmetic sorts the survivors, and the wear items tell you what the real budget was all along. Golf's own participation numbers explain why the category keeps growing: NGF research counts 48.1 million American golfers age 6 and over, and 19 million of them played only off-course, at ranges, simulators and entertainment venues. Every survivor of the six is ranked with a live listing price rather than with one lifted from a press release.
