How to Build a DIY Golf Simulator Enclosure for About $600

A bought golf simulator enclosure starts at $1,699 and climbs past $3,000 before a single ball is struck. Skip it and you keep four figures, but most DIY golf simulator enclosure guides hand you a shopping list and stop short of the two things that actually hurt: a ball leaving the bay sideways, and a frame hung off a ceiling that was never designed to hold it. Here is the cut list, the costs and the tolerances.

What a DIY enclosure saves, and what it does not

About $600 in materials builds a bay 10 ft wide by 8 ft 6 in tall by 5 ft deep: conduit, fittings, screen, bungees, foam and fabric. The nearest engineered kit, the SimBox enclosure, is $1,699 (down from $1,999), and a SIG Standard enclosure starts at $3,099.99, both prices read on 20 August 2026. So the frame is the one line item where a weekend of work is worth roughly $1,100 to $2,500.

The honest half is that the frame is only one line item. A mat, a projector, a launch monitor and a PC cost the same whoever assembled the box around them, so building your own trims the whole simulator budget by a slice rather than a third. Framing the bay yourself is one answer to the package-or-parts fork that sits at the center of the decisions before ordering, and it is the answer that trades a weekend for the largest single piece of hardware you would otherwise buy finished.

What you will need before you start

Set aside a patient weekend for two people: roughly half a day cutting and framing, half a day squaring and tensioning, and an evening for fabric and cable dressing. The skill floor is low. If you can work a tape measure and a tube cutter you can build this. There is no welding, no sewing, and no drilling into anything structural at all if you ballast the feet instead of anchoring them.

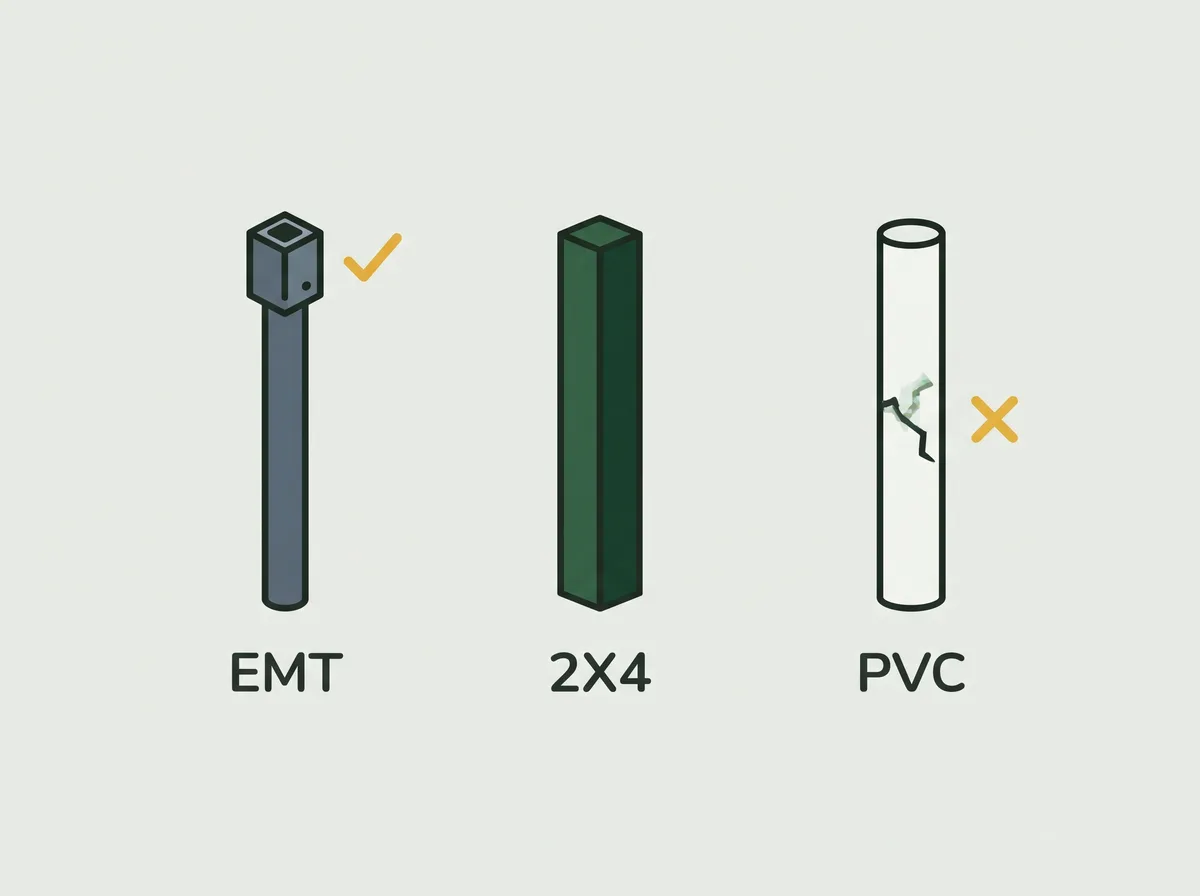

The frame: EMT conduit, 2x4 lumber or PVC

Three materials get used for home bays and only one of them suits every part of one. The table below prices each against the same 10 ft by 8 ft 6 in by 5 ft reference frame and says how each one fails, because with a golf ball in the room the failure mode matters more than the price.

One-inch EMT with set-screw fittings is the default for almost everyone, and 1.25 in is only worth the extra weight on spans over 12 ft. A 1 in trade size stick has a 1.163 in outside diameter and weighs 67 lb per 100 ft according to Wheatland's conduit specification tables, so the ten sticks a reference bay takes come to 100 ft and about 67 lb of steel, carried a section at a time. Lumber earns its place in a basement bay that will never move. PVC belongs nowhere a ball can reach, and that is the distinction most build guides skip: it is fine as a top or side fabric frame outside ball flight, and it is the wrong material anywhere inside the impact zone.

The soft goods

The screen is the one line item where building it yourself saves nothing. A fixed-size commodity face starts at $149.99, and the woven faces that survive a steady diet of driver strikes run $391 to $550, all of them the same faces that take the hits whether they hang on conduit or on a factory frame. Those prices were read on 20 August 2026.

• An impact screen sized to leave a 3 in border of frame showing on each side.
• Ball bungees for every grommet. A 50-pack covers a 10 ft bay at 10 in spacing, at $12 to $25, and 8 in spacing needs a second pack.
• One-inch foam pipe insulation for every upright and header inside the impact zone, roughly 12 sticks.
• Blackout or commando cloth for about 130 sq ft of side and top surround.
• Tarp clips or grommet hardware, so the surround hangs without a stitch of sewing.
• A roll of cloth tape for foam seams and for labeling members as you cut them.

The tools

Nothing on this list is specialist, and the purchase most published DIY totals quietly leave out is the cutter.

• A steel-rated tube cutter, about $25, or a hacksaw and a file if one is already in the drawer.
• Tape measure, marker and a framing square.
• An Allen key or nut driver sized to the set screws your fittings use.
• A spirit level, 4 ft or longer, because a short level lies on a 10 ft crossbar.
• A stud finder, needed only if you intend to anchor rather than ballast.
• Eye protection for cutting and deburring steel.

Measure the room before you buy a single stick

Every cut on the list comes from three numbers you write down before ordering: finished frame width, height and depth. Take them from your room, not from a plan you found online.

• Standard bay: 10 to 12 ft wide, 8 to 10 ft tall, 5 ft deep.
• Ceiling: 9 ft 6 in is the workable minimum and 10 ft or more is comfortable.
• Behind the screen: 12 to 16 in of free travel, with 12 in as the hard floor.
• Beside the screen: 2 to 3 ft of clear swing space past the screen edge, plus the 3 in screen border inside the frame.
• Hitting position: 10 to 12 ft back from the screen face.
• Both-handed play: 15 ft of width if a right and a left hander will share the bay without moving the mat.

Mark the real hitting position on the floor first. Take a full driver swing standing on that mark and have someone note the highest and widest points the club head reaches, then measure from those points to the nearest obstruction. Ceilings measure to the lowest thing on them, which in a garage is the door rail or a light fitting rather than the drywall. Write the three finished dimensions on paper and shop to them.

Build the frame

Step 1: Cut the conduit to the list

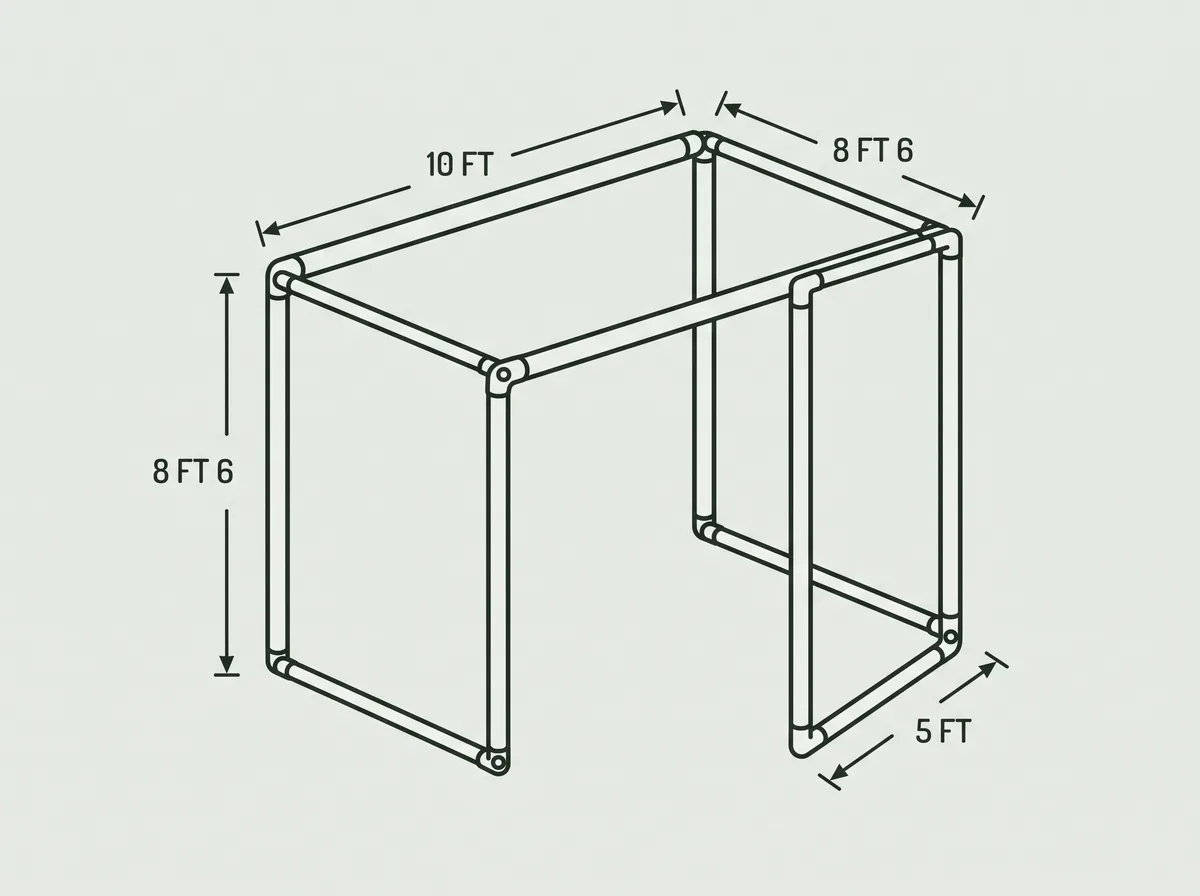

The reference bay at 10 ft wide by 8 ft 6 in tall by 5 ft deep takes ten 10 ft sticks of 1 in EMT. Three stay uncut: the top and bottom crossbars of the screen wall, and the front header. Four are cut to 8 ft 6 in for the four legs, two at the screen wall and two at the front, leaving four 18 in offcuts worth keeping for mid-span stubs. Two more are cut in half to give the four 5 ft depth runs. The tenth stick is the spare, and you will want it. Cut with a tube cutter rather than a saw wherever you can, because the rolled edge a cutter leaves seats into a set-screw fitting better than a sawn one. Deburr every cut end, then label every piece with tape as you go.

Step 2: Assemble the screen wall first

This uses the pieces cut in step 1. Build the flat rectangle that will carry the screen while it is lying on the floor: bottom crossbar, two legs, top crossbar, joined with three-way corner fittings at the top two corners so the depth bars have somewhere to land. Stand it up facing the wall it will sit against, but not touching it. The reference bay takes six three-way corner connectors and two two-way elbows, plus a tee wherever a mid-span support meets a run. Leave every set screw finger tight, because the frame still has to be pulled square in step 4.

Step 3: Add the depth bars and the front header

This depends on the standing screen wall from step 2. Run the four 5 ft depth bars back from the screen wall corners, then close the open front with a header across the top. That front header is the piece that stops the whole frame racking sideways under its own weight, so it goes in even on a bay with no front fabric. Set the roof to overhang the front by about 6 in, so the top surround hangs clear of your head at the top of the backswing.

Step 4: Square the frame and tighten every fitting

This depends on the full skeleton from step 3. Measure both diagonals of the screen wall, corner to corner. Equal diagonals mean the rectangle is square, and a difference of more than about 1/4 in across a 10 ft span is worth chasing out before anything gets tightened. Level the top crossbar. Only then tighten the set screws, working right around the frame twice, because pulling one corner tight drags another out of square. A frame that rattles at ball strike is almost always a set screw that was tightened once, in a single pass, before the frame was square.

Step 5: Ballast the feet or anchor to the joists

The default is the boring option and it is also the safe one. Weight the four feet with sandbags or a length of pipe laid along the base, fit rubber feet so the frame does not walk across a slab, and the enclosure never touches the house. That is the renter's answer and it holds a freestanding frame perfectly well, because the screen absorbs the ball and the frame only ever carries fabric.

Anchor only where the bay genuinely has to hang from the ceiling, and establish what that ceiling is made of before a single screw goes in. A stud finder tells you where the framing runs, not what it is, so confirm each member with a small test hole and look at how the roof above it is actually built. Spread the load across at least three joists using a 2x4 ledger rather than hanging a point load off a single member, and fasten with structural wood screws sized from the manufacturer's published tables, never with drywall anchors. Simpson Strong-Tie's structural wood screw range carries the technical documents that give an allowable load for each screw in each member thickness, and that table, not a guess, is what sizes the fastener. If the framing turns out to be engineered roof trusses rather than joists, hang nothing from the bottom chord without a truss designer signing it off, because the truss industry's own description of bottom chord loads treats bottom chord live load as something a truss carries only where it was designed to.

Hang and tension the impact screen

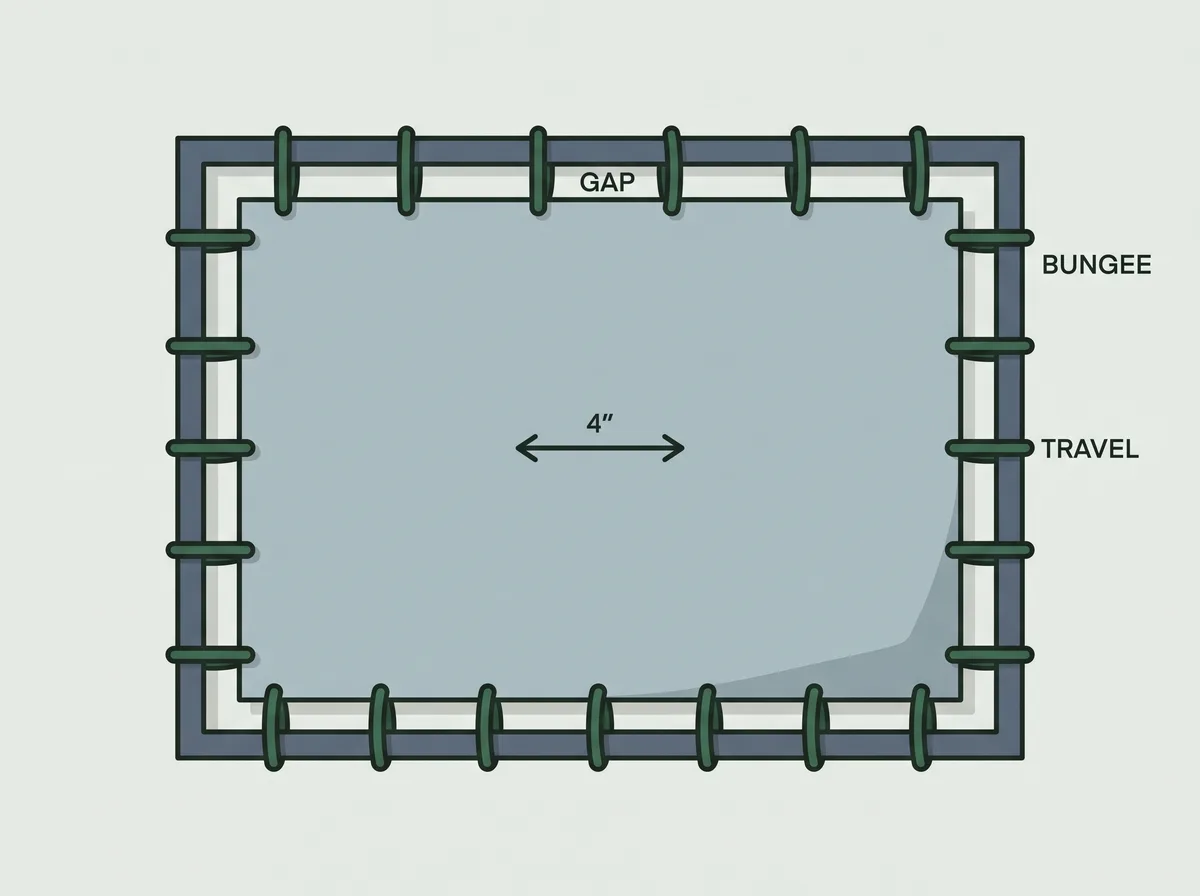

This depends on the squared frame from step 4. Tensioning is where most first builds go wrong, and the reason is that the field describes it as a feeling rather than a number. Here are the numbers.

1. Check the grommet spacing. It wants to be every 8 to 10 in around the perimeter, with a ball bungee at every grommet rather than every other one.
2. Leave a 2 to 3 in gap between the screen edge and the frame member, so the bungees do the stretching instead of the fabric.
3. Hang the top edge first, working from the center bungee outward to each corner.
4. Hang the two sides next, again center outward, then the bottom hem last.
5. Push the center of the screen with a flat palm. It should travel 4 to 6 in and spring back. Drum tight fires the ball back at your shins, and slack lets the screen slap the frame and wear at the fold.
6. Hit twenty wedges, then twenty drivers. A correctly tensioned screen drops the ball inside 3 to 4 ft of the face.

Anything that comes back past the hitting position means one of two things: too much tension in the screen, or not enough free travel behind it. Fix the travel first, since 12 in of clear space behind the face is what lets the screen do its job at all. A baffle net hung loosely in that gap quiets the bay and takes the sting out of a thinned iron, and loose is the operative word. A taut baffle is just a second trampoline.

Close the gaps with padding, surround and blackout

One pass of soft goods does three jobs. Padding comes first: 1 in foam pipe insulation slit over every upright and header a ball can reach, taped along the seam. It costs about $30 for a whole bay and it is the item first-time builders skip most often, which is why bare conduit ricochets are the classic DIY injury story.

The surround comes second. Side and top fabric should overlap the screen edge by at least 6 in, so there is no straight sight line from the ball to a bare frame member, and the 2 to 3 in gap where the bungees live wants a foam bolster or a hanging fabric flap in it. Containment is not a nicety on a narrow bay.

Light control is the third job and the same fabric does it. Dark surround fabric is the cheapest contrast upgrade a bay ever gets, which matters more than most builders expect once the projector's throw and lumen math is fixed by the room and cannot be changed.

Leave a service gap for the projector mount and the cable runs before the fabric goes up. Retrofitting an access flap means taking the whole surround down again, and the surround is the one part of the build that does not enjoy being handled twice.

What the build actually costs

Published DIY totals for roughly this bay run from about $400 to about $670, a spread wide enough to be useless without line items behind it. Here is ours, with the thing that moves each number.

The hardware store lines, conduit and fittings through to bungees, foam, fabric, clips and the cutter, are ranges and approximations taken from the published build guides, because the big-box listings price client-side and we will not quote a figure we could not read. Only the screen, kit and enclosure prices are read prices, taken on 20 August 2026. The spread between those published totals is not disagreement about conduit. It is the tool bought once, the stick cut wrong, the fitting count that grows the moment a mid-span support goes in, and delivery on the screen. Budget one spare stick and one spare pack of fittings and $600 holds. What $600 does not cover is ballast for the feet, side netting on a narrow bay, and everything that goes inside the frame.

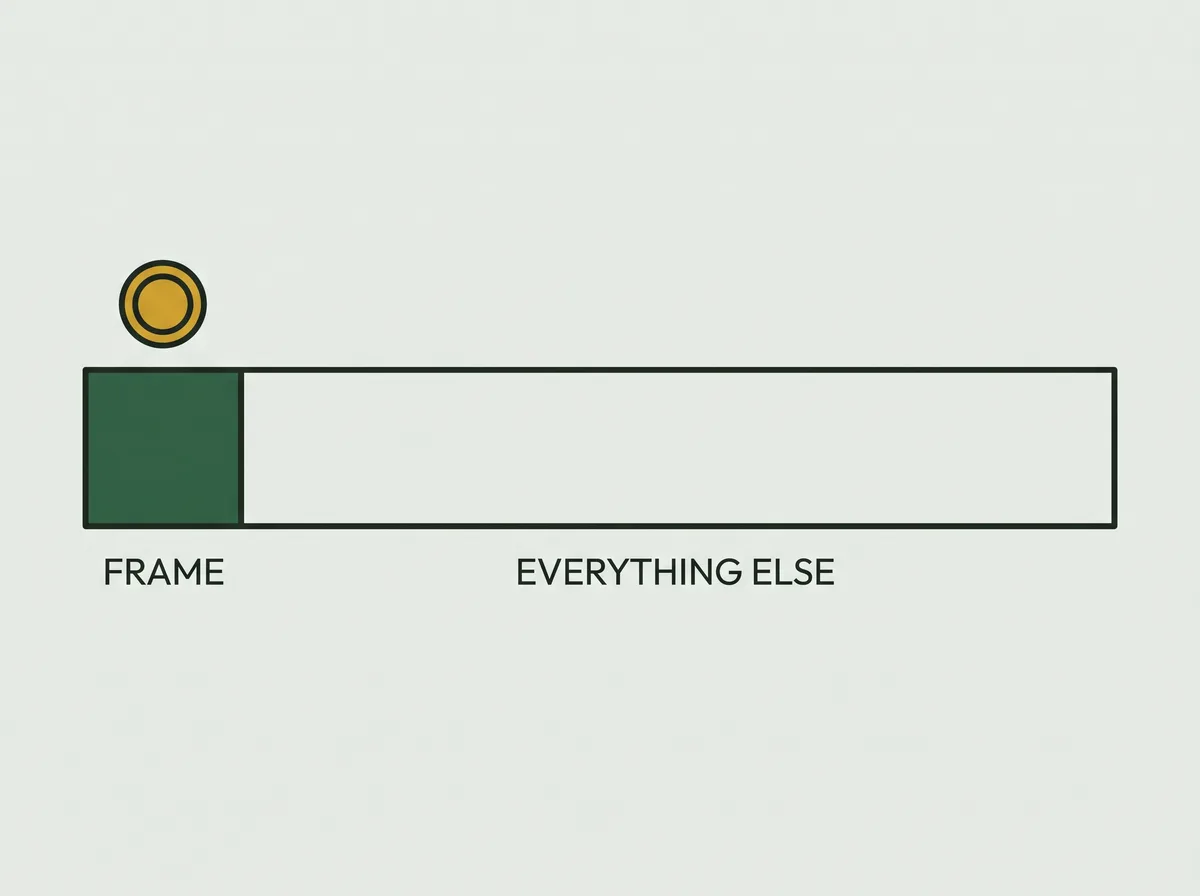

Saving $1,100 against a kit only matters on a build where the frame is a real share of the spend, and on most bays it is not, because the mat, monitor and projector arithmetic dwarfs whatever the box cost. The useful way to think about frame savings is as launch monitor budget that has not been spent yet.

Safety checks before the first full swing

It helps to know what the fabric is catching. Trackman's own ball speed data puts the average male amateur at 133 mph of driver ball speed, a scratch player at 161 mph and the PGA Tour average at 171 mph. That is what arrives at a fabric face 10 ft away, several hundred times an evening, and it is why the edges of a bay matter more than the middle.

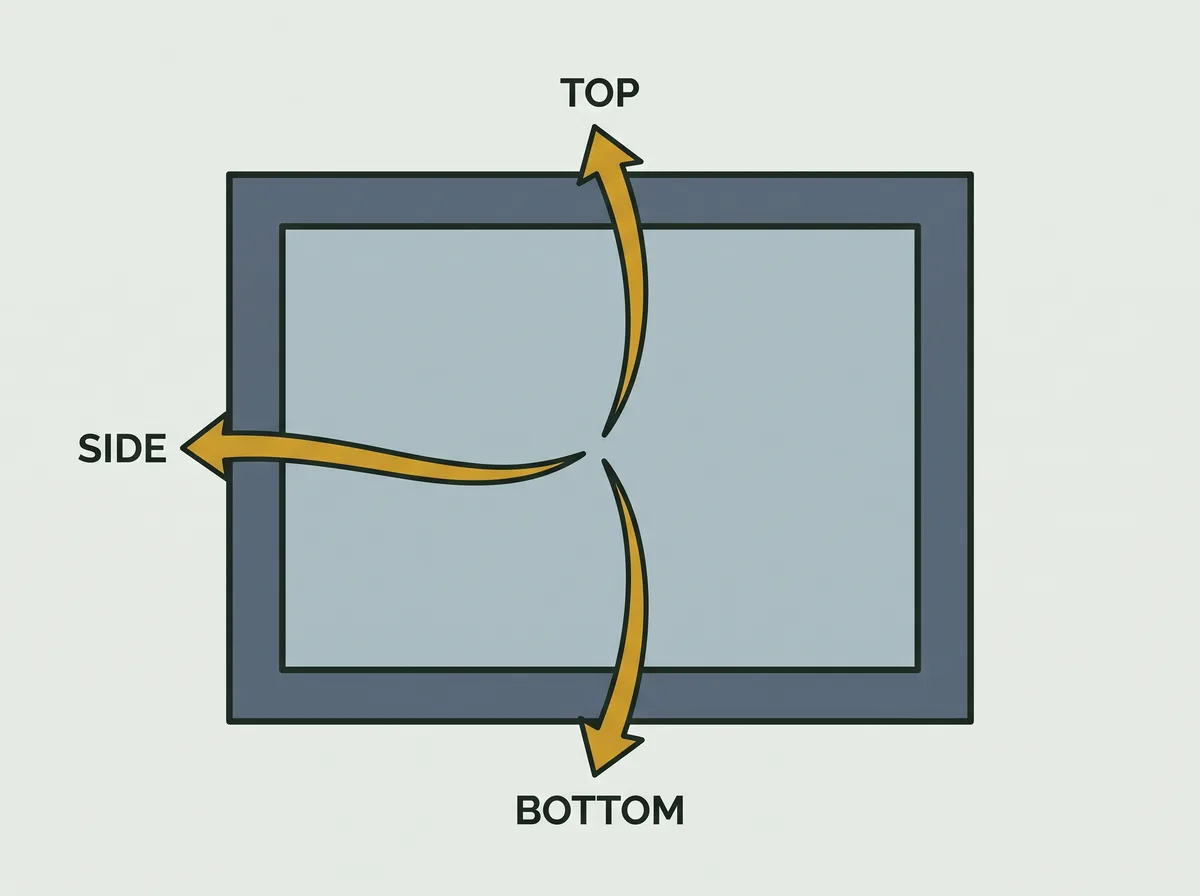

Balls leave a bay by four routes, listed here roughly in the order they catch people out.

1. The side gap between the screen edge and the frame upright, where the bungees live and the surround is thinnest.
2. The bottom hem, if the screen does not overlap the mat or reach the floor.
3. The top, if there is no roof overhang and the surround stops at the header.
4. Straight past the frame on a shank, which is why a bay narrower than 12 ft wants side netting hung outside the frame line.

Then walk the bay once before the first full swing, and check the six things that are cheap now and annoying to retrofit later.

• Every set screw tight, confirmed by hand on a second pass around the frame.
• Every reachable frame member wrapped in foam.
• Screen travel of 4 to 6 in at the center under a flat palm.
• A minimum of 12 in of clear space behind the screen face.
• Nothing breakable inside the frame line, and cables run out of the swing path.
• Nobody standing beside the golfer inside the frame.

When a kit is the better buy

A kit wins in three cases and it is worth being straight about them. A finished room, where a freestanding engineered frame protects the drywall and the resale value. Odd geometry, which made-to-measure solves and straight conduit fights all weekend. And a household that prices a weekend of two people's labor at what it actually costs. A kit's price buys finish, a warranty and a guaranteed fit, which is why the enclosures worth the money start at $1,699 rather than at hardware store prices.

DIY wins on budget, on a garage or basement that can take a scratch, and on one thing no glued or riveted kit offers: a set-screw EMT frame breaks down into a car-load of pipe and goes back up in an afternoon. For anyone renting, that is not a nice extra. It is the reason to choose conduit over lumber in the first place.
