Low ceiling golf simulator: the real numbers at 8, 8.5 and 9 feet

A tape held against the basement drywall reads 8 ft 2 in, and that is where most simulator plans quietly die. The number is real, but it is the wrong number, and ordering against it is how people end up flinching in a bay they paid five figures for. A low ceiling golf simulator lives or dies on effective swing height, which is what remains after the mat and your shoes. Here is what each half foot actually buys.

What 8, 8.5, 9 and 10 feet actually allow

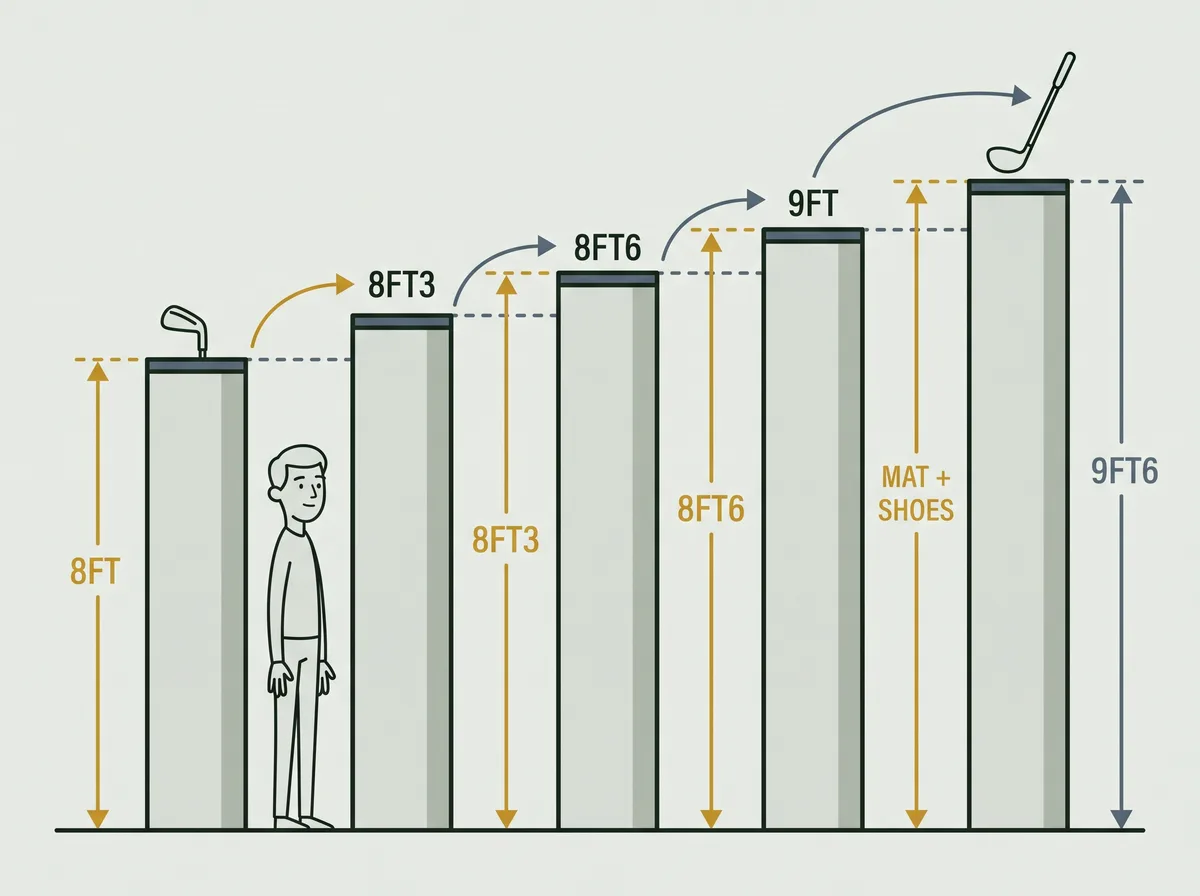

Start with the subtraction nobody does. A standard hitting mat stands 1.5 to 2 in off the slab, and golf shoes put roughly another inch under your heels. Both come off the top of the room before the club has moved, so a measured 8 ft 6 in basement gives about 8 ft 3 in of swing space, and a measured 8 ft gives about 7 ft 9 in. That is why every figure below is stated twice.

Those bands are not ours alone, and the manufacturers disagree in a useful way. Trackman's own room guidance recommends 3.0 m, close to 10 ft, and answers the 8 ft question head on: in rare cases and with modified swings yes, but not for full swings or long-term use. SkyTrak publishes a minimum room height of 8 ft for its smallest studio footprint. Rapsodo sits at the conservative end with a 9 ft floor, 9 ft for golfers 5 ft 8 in and under, 10 to 11 ft for taller players, and a 6 to 9 in buffer over whatever your swing measures. Three credible sources spanning 8 to 11 ft means stature and swing plane decide this, not the drywall. Height fails first but never alone, so the depth and width the swing needs get measured in the same session as the ceiling.

Measure to the lowest thing over the ball, not the ceiling

Your ceiling is whatever hangs lowest within about 4 ft of the ball, and in a finished basement that is rarely the drywall. Beam pockets, HVAC trunk lines, bulkheads, sprinkler heads, recessed can housings, joist hangers and cable runs all sit below the finished line. In a garage the offender is the door itself: a sectional track and its opener rail hang well below the joists and run straight down the middle of the room, which turns a 9 ft garage into an 8 ft bay. That is why the builds that work at garage height put the tee beside or behind the track rather than under it, or move the opener to a wall-mounted jackshaft unit and take the rail out of the swing entirely.

How to measure your own swing height in ten minutes

Nobody swings the average, so the table above is a shortlist rather than an answer. Three tests, in rising order of accuracy, give you your own number before anything ships.

1. Slow swing, then full speed. Stand at the exact tee position with your longest club, make a slow full swing, then repeat at speed. Trackman gives the same instruction in its room guidance, and the order matters because the shaft bows and the clubhead travels higher at speed than it does at walking pace.
2. The cardboard ceiling. Tape a strip of cardboard across the joists at your candidate height and swing an old club at it. A strip you clip costs nothing to replace, whereas drywall you clip costs a patch, a sand and a repaint.
3. Phone video, face on. Put bright tape on the shaft, film from face on with a door frame of known height in the shot, then step through the frames. Measure the highest frame against the door. This is the only method that returns a number rather than a pass or a fail, which is what you need to compare against a spec sheet.

Then add the buffer. Rapsodo's published guidance is 6 to 9 in of clearance above measured swing height, and the mat and your shoes have taken a third to half of that before you start. Two details catch people out. The finish, not the top of the backswing, is usually the highest point the clubhead reaches, so a test that stops at the top passes a room that will fail. And your guests are taller than you.

Which launch monitors work in a short room

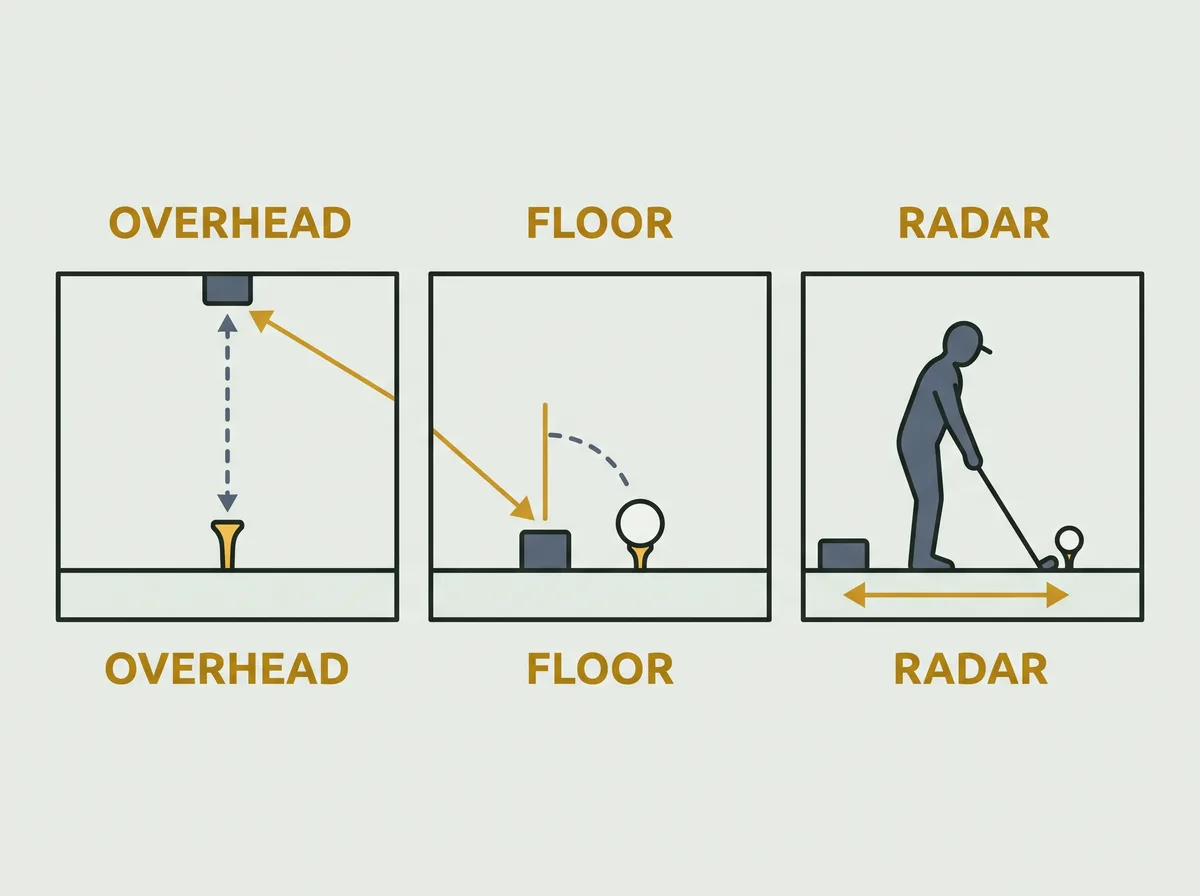

Ceiling height changes nothing about how well a launch monitor reads a golf ball. It changes where the unit can physically live, which splits the market into three mounting classes.

Overhead units are out below 9 ft, for mechanical reasons rather than optical ones. The EYE XO2 installation manual mounts its bracket flat against the ceiling, 3.5 ft forward of the tee, and states a 9 ft installation environment. Trackman iO wants 10 ft. Even in a room that technically clears the spec, the housing occupies the exact band of air the clubhead needs at the top of the swing. At $10,999 to $11,000 for an EYE XO2 and quote-only pricing on the iO, this is also the most expensive way to get a low room wrong.

Floor-based photometric units are the low room's answer. They sit on the mat beside the ball, need no mount at all, and read the first few feet of flight rather than the full carry, so a short bay does not starve them of data. SkyTrak makes the placement point plainly in its space planning: the unit sits next to the ball, where other tracking types want up to 8 ft behind the hitting area. The SkyTrak ST MAX is $1,995 (regularly $2,995), with Core membership at $349.99 a year or Elite at $599.99. The Uneekor EYE MINI Lite starts at $1,999. Bushnell's Launch Pro is $2,499 plus Silver at $199 a year or Gold at $499. Foresight's GC3S is $3,799 plus $499 a year, the GC3 is $6,999 unlocked with no subscription, and the Garmin Approach R50 is $4,999.99 with a built-in 10 in touchscreen and no PC to find space for.

Radar is a depth problem, not a height problem. A FlightScope Mevo+ at $1,099 (regularly $2,299) reads perfectly well under a low ceiling, but it wants roughly 8 ft of clear floor behind the player, which the same cramped basement usually cannot spare either. The Mevo Gen2 at $1,299, the Rapsodo MLM2Pro at $599.99 (regularly $699.99) and the Garmin R10 at $499.99 (regularly $599.99) sit in the same trade: cheap to buy, expensive in floor length.

Four ways to buy back ceiling inches

Mapping your obstructions is only worth what the fixes are worth. Four moves, cheapest first, each with a number attached.

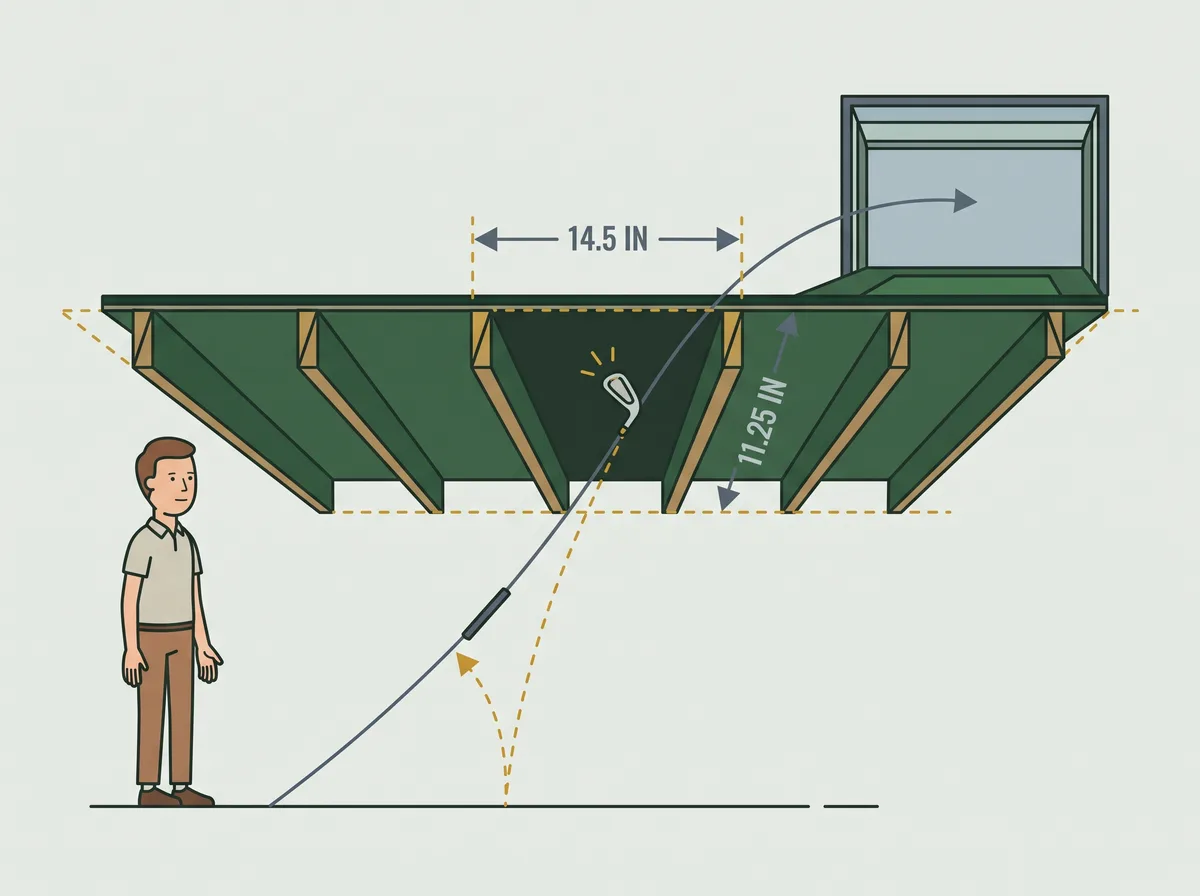

Hit up into an open joist bay

This is the only free height in an unfinished basement. Joists at 16 in on center leave a clear corridor 14.5 in wide between them, and the height you gain is the joist depth, 9.25 in for a 2x10, 11.25 in for a 2x12 and 11.875 in for a common engineered I-joist, plus the half inch of drywall that comes down with it. A measured 8 ft room on 2x10 joists ends up close to 8 ft 10 in over the ball, which moves it up two rows of the table above. The constraint nobody states is direction. The clubhead sweeps up in the plane of the swing, and that plane points at the screen, so an open bay only helps if the joists run parallel to the target line. If they run across it, you gain the drywall thickness and nothing else. Box the open bay in dark fabric so it neither shows in the projected image nor bounces a ball off a stud.

Lose the mat height, not the mat

A 2 in mat is 2 in of ceiling, and it is the cheapest inch in the building to recover. Dropping from a thick stance-and-strike mat to a low-profile one saves roughly an inch. Recessing the mat flush into a built-up subfloor saves the entire stack, at the cost of framing the floor around it. What you should not give up is the tee: insert-tee mats such as the GolfBays 4 ft 11 in square at $379 take a real tee without a riser stacked under the ball, which is the usual way people put the height straight back.

Move the ducts, the lights and, if you must, the joists

Recessed can lights need a housing several inches deep above the drywall line and always seem to sit over the tee. Surface-mounted LED panels are about an inch thick and take the fixture out of the swing entirely, for the price of an afternoon. Rerouting a duct run buys back its full depth and is usually the largest gain available without touching structure. Beyond that you are into engineering. One owner building at this height reports replacing 11.5 in engineered joists with 3 in steel I-beams to form a tray ceiling over the hitting area and gaining more than 6 in, and two others cut three or four joists 2 in deep and 20 in wide with the neighboring lumber doubled to carry the load. Both are jobs with a stamp on the drawing, not a Saturday with a reciprocating saw.

Excavation is real, and nobody publishes what it costs

Underpinning or bench footing a basement floor gains a foot or more of head height and is the only fix with no ceiling on it. It is also the one we could not put a price on: contractors advertising the work quote per project and publish no price, no timeline and no height-gained figure. Treat it as a structural renovation, take three quotes, and compare the total against moving the whole bay out to the garage.

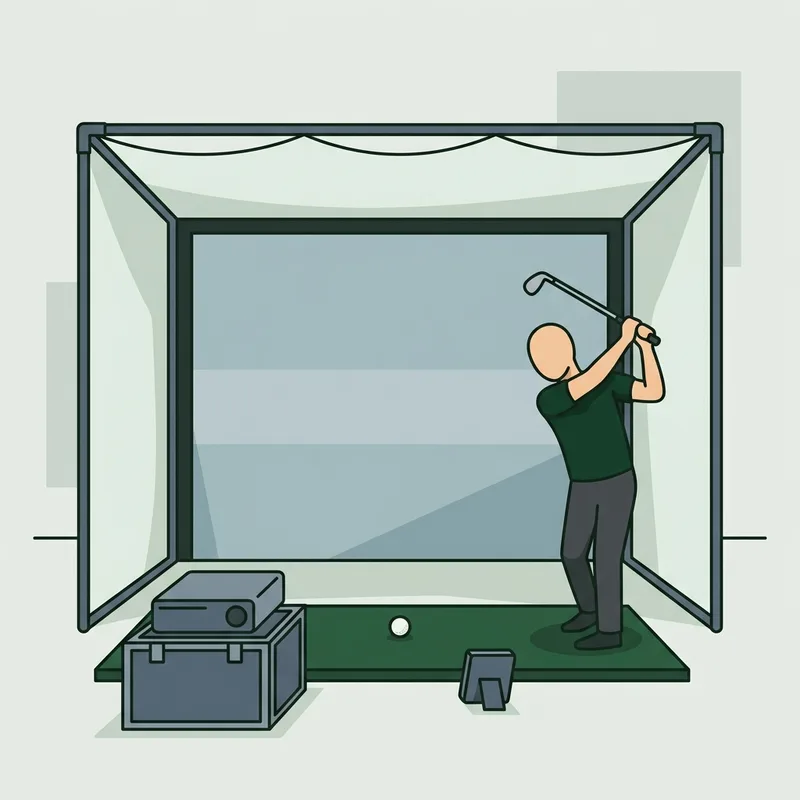

The enclosure, screen and projector that fit under 8 ft 6 in

The enclosure is a second ceiling, and it is the component most likely to fail a low room before your swing does. SkyTrak's published space plan is the clearest worked example on the market: the 8 ft studio frame stands 7 ft 6 in tall in an 8 ft wide by 4 ft deep footprint, with a stated minimum room of 8.5 ft wide, 15 ft deep and 8 ft high, while the 10 ft and 12 ft frames stand 8 ft 6 in and want 9 ft rooms, and the 13 ft Deep stands 10 ft and wants 10 ft 6 in. Multi-size lines cover the same ground at lower cost: GolfBays SimBox enclosures come in seven sizes at $1,699, down from $1,999, with the Pro+ impact screen at $550 and the Reversible PRO at $391, down from $541.20. Below roughly 7 ft 6 in of frame height the catalog runs out, and cutting a frame to your own height from conduit or timber becomes the only way to get the bay under the joists.

Where the projector goes when the ceiling is spoken for

Two positions survive a low room: a floor enclosure at the front of the bay, or an arm mounted on the enclosure frame inside it. SkyTrak ships its 8 ft studio with the Optoma ZW350ST in a protective floor mount and ceiling-mounts the same projector on every larger size, which is as clear a signal as the market gives that floor mounting is the short room's default. A GolfBays projector case and arm runs $299. Dropping the projector to the floor changes the throw math rather than removing it, and the throw ratio your screen width demands is what decides whether that position fills the picture or spills light off the frame. The ZW350ST sits at 0.521:1, the Optoma ZH451ST at 0.496:1 and the BenQ AH500ST at 0.5:1, which is the band that fills a 10 to 12 ft screen from inside a short bay.

Playing the low room: shorter clubs, shorter swings, real losses

Cutting the driver down is the cheapest way to buy arc, and the cost is measurable rather than theoretical. A three-length driver test at 45.5, 44.5 and 43.5 in recorded 273.7 yd of total distance from the 45.5 in shaft and 274.4 yd from the 44.5 in, with carry four yards longer on the shorter one, and the 43.5 in shaft gave the shortest drives of the three by only three yards. Dispersion was best with the shortest shaft and worst with the longest. Two inches off a driver is worth a couple of yards in that test, and it takes the top of the swing arc down with it. It is also well inside the rules: the 46-inch club length rule for clubs other than putters is an optional Model Local Rule written for the elite game, and shortening a driver runs away from that limit rather than toward it.

Shortening the swing costs nothing and works tonight. A lead arm that stops at nine o'clock drops the clubhead roughly a foot and a half below a full parallel position, which is more clearance than any mat swap or joist bay will hand you. Test it against the cardboard strip rather than trusting the feeling, because a backswing you consciously shorten in an empty room tends to reappear at full length once a number is on the screen.

Then price the part nobody advertises. Owners building at these heights report two consistent costs: a swing that flattens over a winter of ducking the ceiling, and deceleration through impact from fear of hitting it. Both argue for building around the club you will actually swing rather than the one you hope to rescue. An irons and wedges bay is no consolation prize either, since scoring clubs reward repetition in a way the driver does not.

Protect the ceiling and the frame before the first swing

A few dollars of foam prevents most of the damage a low room does. Gutter foam in 4 ft lengths, wrapped in dark fabric, beats pool noodles on the frame bars because it holds its shape and does not fire a ball back at you. Exposed EMT screw heads on a conduit frame are the genuine hazard, since a ball off a screw head returns fast and at an angle nobody plans for, so cover every one before the first session. Drywall dings are the cheap failure. Nothing about the short game cares how high the ceiling is, which is why putting practice on a simulator runs at full fidelity in a 7 ft room.

What to buy at your measured height

Take your effective height, not the drywall number, and start here. Every price below was read on 20 August 2026 and is worth re-checking against the live listing before you order.

• 8 ft 0 in to 8 ft 3 in effective: build an irons and wedges bay and stop fighting it. A Garmin R10 EasySim at $1,830, a Rapsodo MLM2Pro EasySim at $1,925 or a Square Golf EasySim at $1,920, all with the projector on the floor, and the money not spent on ceiling clearance goes into the mat and the screen.
• 8 ft 4 in to 8 ft 9 in effective: the divergence band, so run the slow-swing test before anything ships. If it passes, a Rapsodo MLM2Pro SimBox at $3,299, a Garmin R10 SimBox at $3,349 or a Square Golf SimBox at $3,599 all fit, and a SkyTrak+ SimBox at $4,899 adds photometric ball data on top.
• 9 ft 0 in and up effective: the full bag comes back for most golfers up to 6 ft. A SkyTrak ST MAX SimBox at $5,385.44, a Uneekor Eye Mini Lite SimBox at $5,270 or a Foresight GC3S SimBox at $5,679 all fit the room, and overhead mounting finally becomes an option once you clear 9 ft 6 in.

Ceiling height narrows the shortlist without picking for you, and the decisions that come before ordering, tracking type, software, running fees and wear, run exactly the same at 8 ft as they do at 12.
